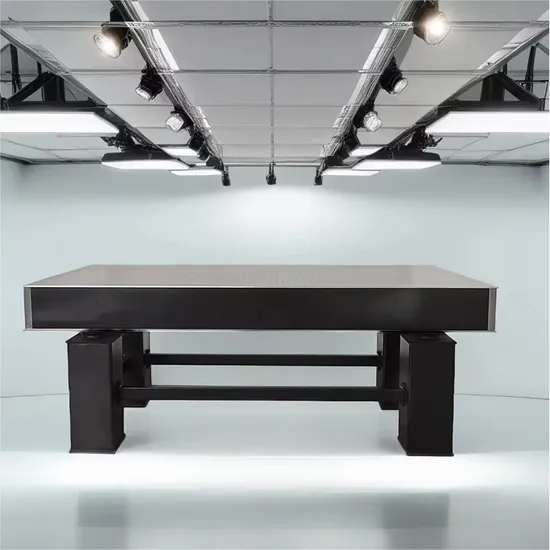

Hollow Cone Vibration Isolation Optical Table

Product Description

Inherent Frequency	4-8Hz, vetically; 2-4Hz, horizontally
Total Table Heigh	800mm
Table Top Flatnes	≤0.05mm/m²
Surfaced Roughnes	≤0.8μm, matt surface finis
Isolator Height Adjustment Rang	±10mm
Leveling Type	Manual
Material	Stainless Steel

Products Description

Model	Dimension(mm)	Inherent Frequency	Height(mm)	Load capacity(Kg)
POT-G09-06	900×600	Vertical:4~8Hz Horizontal:2~4Hz	800	135
POT-G10-08	1000×800	Vertical:4~8Hz Horizontal:2~4Hz	800	200
POT-G12-09	1200×900	Vertical:4~8Hz Horizontal:2~4Hz	800	270
POT-G15-10	1500×1000	Vertical:4~8Hz Horizontal:2~4Hz	800	375
POT-G18-10	1800×1000	Vertical:4~8Hz Horizontal:2~4Hz	800	450
POT-G20-10	2000×1000	Vertical:4~8Hz Horizontal:2~4Hz	800	500
POT-G12-12	1200×1200	Vertical:4~8Hz Horizontal:2~4Hz	800	360
POT-G15-12	1500×1200	Vertical:4~8Hz Horizontal:2~4Hz	800	450
POT-G18-12	1800×1200	Vertical:4~8Hz Horizontal:2~4Hz	800	540
POT-G20-12	2000×1200	Vertical:4~8Hz Horizontal:2~4Hz	800	600
POT-G24-12	2400×1200	Vertical:4~8Hz Horizontal:2~4Hz	800	720
POT-G30-12	3000×1200	Vertical:4~8Hz Horizontal:2~4Hz	800	900
POT-G15-15	1500x1500	Vertical:4~8Hz Horizontal:2~4Hz	800	560
POT-G18-15	1800x1500	Vertical:4~8Hz Horizontal:2~4Hz	800	675
POT-G20-15	2000x1500	Vertical:4~8Hz Horizontal:2~4Hz	800	750
POT-G24-15	2400x1500	Vertical:4~8Hz Horizontal:2~4Hz	800	900
POT-G30-15	3000x1500	Vertical:4~8Hz Horizontal:2~4Hz	800	1125
