China Best Selling 2 Rows Hst Gearbox Corn Harvester

Product Description

NO.	ITEM		UNIT	PARAMETERS
1	Model		/	4YZP-2(Z)
2	Diesel engine	Model	/	4TE40
		Rated power	kW/hp	29.5/40
3	Dimension (L×W×H)		mm	4650×1620×2690
4	Working width		mm	1100
5	Elevator	Position/ width	/mm	Right side/375
		Maximum passing height	mm	2100
6	Minimum ground clearance		mm	240
7	Efficiency in working hour		hm²/h	0.1~0.26
8	Picking system / Length		/mm	Snapping roll:Ф95×560
	Lowest picking height		/mm	458
9	stripping machine	Stripping roller type	/	Spiral rubber roller
		Stripping roller size/ Quantity	mm/piece	Ф73×655/8
10	Grain tank	Volume	L	1000
		Unloading height	mm	1920
11	Straw processing	Header front cutting	Type	Hob type
		Returning machine	/	/
		Returning machine width/ position	mm	/
		Leaf cutting type	/	/
12	Cabin model		/	/
13	Gearshift method/ Driving model		/	HST+ mechanical gearbox /4WD
14	Wheel base		mm	2100
15	Wheel track	Guiding wheel	mm	1180
		Driving wheel		1100
16	Tyre size	Guiding wheel	/	6.00-12
		Driving wheel	/	6.00-16

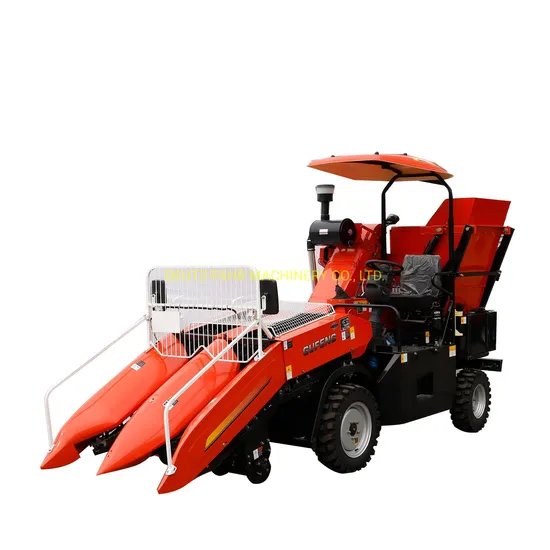

4YZP-2 corn harvester is a kind of new production which is produced according to the need of customers and market. This machine can be mated power from 25 hp to 35 hp, it can finish the work of picking, peeling, cutting and returning in one time. This machine has many advantages such as reasonable structure, short body, few fuel consumption, easy operating, and high efficiency. Each index gets to the national standard; it is the best choice for users.
Structural features:
1. Compact structure, good maneuverability, dispense with clearing way by labor. Can finish picking, conveying, peeling, collecting, cutting and returning in one time.
2. Chain type pulling forced gather technology can solve the adaptability problem among multiple lines.
3. Pulling stem roller, picking spike plate type picking device which is simple structural, small volume, light weight, few loss of grain, high efficiency.
4. Self-peeling machine is high efficiency, the same as cutting and returning device.
5. National initiate: peeling machine front mounted, peeling in different lines, prevent blocking.
6. National initiate: self propelled double lines harvester which is lowest and lightest also has complete function.
7. National initiate: front and back wheel track adjustable.
8. National initiate: double connecting rod, slider elevator mechanism to increase the stability of header and height of rise and fall.
9. Fluid-link steering, easy operating.
10. National initiate: grain tank middle mounted, hydraulic unloading to one side.
11. Main gear shift lever is put by the right side of steering wheel, so engaging a gear is comfortable.
