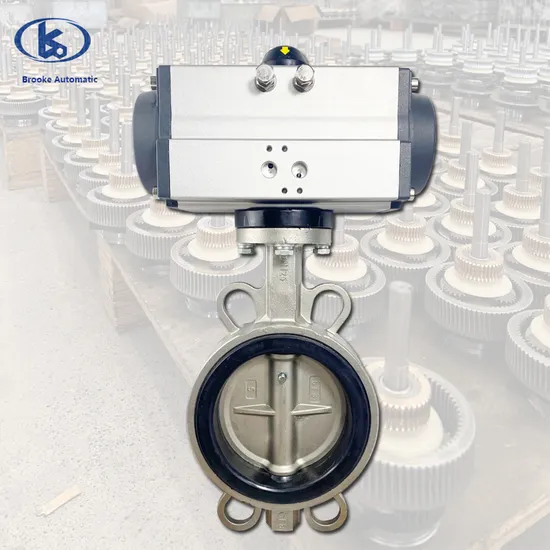

Stainless Steel EPDM Valve Seat Pneumatic Butterfly Valve
Basic Info.
Model NO.
D671X-16P
Connection Form
Wafer
Structure
Centre Sealing
Seal Form
Force Sealed
Valve Stem
Orbit
Work Pressure
Low Pressure (Pn<1.6mpa)
Working Temperature
Normal Temperature (-40°C<T<120°C)
Material of Seal Surface
Soft Sealed
Valve Body
Sheet Metal
Standard
ANSI/ASME Standard Valves
Application
Industrial Usage, Water Industrial Usage
Body
Cast Iron, Wcb
Sealing Material
PTFE, Ppl, NBR
Operation
Double Acting ;Single Acting
Place of Origin
Jiangsu
Transport Package
Carton
Specification
6
Trademark
Brooke
Origin
China
HS Code
8481804090
Production Capacity
10000piece Per Year
Packaging & Delivery
Package Size
3.00cm * 3.00cm * 6.00cm
Package Gross Weight
3.000kg
Product Description
| Movement: | Standard adjustable 90°±% |
| Lubrication: | All moving parts are lubricated for life-long cycle |
| Cycle Life: | 1,000,000 Operations |
| Body: | Hard anodized extruded Aluminium alloy |
| Indicator: | Open/Close Disc |
| Travel Stops: | External adjustable±5% in both open/closed position |
| Springs: | High tensile spring sets of alloy steel |
| Piston Shaft: | Nickel plated alloy steel reduces friction |
| Piston Guides: | Self lubricating(Polypropylene+GF)Piston Seals Nitrile** |
| Piston: | Die casted aluminium dual piston |
| End Caps: | Polyester coated die cast aluminium |
Pneumatic soft seal butterfly valve
1. Material: The valve body material is stainless steel/WCB, and the valve seat material can be selected from EPDM, PTFE, NBR, etc.
2. actuator: The valve is operated pneumatically, which means it is controlled by air pressure through the actuator. There are two types of actuators, one is double acting and the other is single acting.
3. Configuration: The soft sealed centerline butterfly valve has good sealing and pressure resistance.
4. Chip based design: easy to install and disassemble
5. Butterfly valve mechanism: This valve uses a rotatable valve disc to control the flow of fluid. When the valve disc is aligned with the pipeline, flow stops, and when the valve disc is vertical, flow is allowed.
FAQ
Common problem:
Q: What is our minimum order quantity?
A: Our minimum quantity is 1 piece.
Q: What is your business scope?
A: Our business scope includes pneumatic actuators, air source processing, air solenoid valves, electric valves, pneumatic valves, quick couplings, etc.
Q: What is your delivery date?
A: This depends on the quantity of orders. The delivery date is 7-30 days. If you need urgent products,
We can accelerate the production of the first arrangement.
