OEM ODM RJ45 UTP Cat5e Keystone Jack Wall Panel Mount Connector in-Line Coupler Face Plate

Product Description

Product Description
Are you looking for convenient, safety, best quality products?
Wholesale OEM ODM RJ45 UTP data transmission cat5e keystone jack
The specification and performance are as following:

Standard 110 and LSA dual use punching tool make operation more convenient
Electrical Characteristics
DC Resistance: ≤300mΩ
Contact Resistance: ≤20mΩ
Dielectric strength: 1000V(AC750V)1min no break down and flashover
Insulation Resistance: ≥1000MΩ
Physical Characteristics
Phosphor bronze with nickel plated , connector pins with golden plated
IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables
Inserting Duration: ≥750 times
Punching Duration: ≥250 times

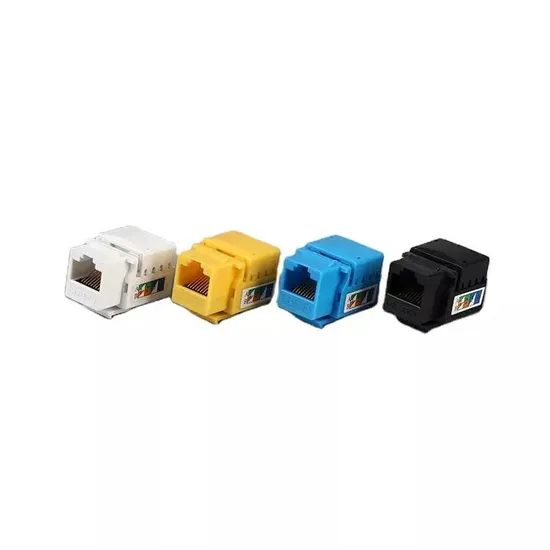

Jack housing plastic part: UL 94V-2,RED,YELLOW,BLUE,GREEN,BLACK and other colors available
Termination caps material UL94V -2
Working temperature: -25ºC~60ºC

Voltage Rating	AC 125V
Current Rating	1.5 AMPS
Plating	3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Housing	PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0)
Insertion Force	2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Temperature	-25°c-60°c

1. It is suitable for connecting the communication sockets between the devices and the working area to realize signal transmission.
2. Compact shape so that the product appearance is simple and beautiful.
3. The IDC end lines according to the specified color standard, which is convenient for fast and accurate line.
4. Equipped with dust cover to protect the module, cover dust and dirt into.
5. Plug and socket for 1000 or more times.
6.IDC: The cable can be connected through 22 to 26AWG, and the number of times of repetition is ≥300.
7. Contact resistance: Contact resistance ≤2.5MΩ under normal atmospheric pressure.
8. Insulation resistance: insulation resistance ≥1000MΩ under normal atmospheric pressure.
9. High pressure resistance: AV 750V1 minutes without breakdown and arc phenomenon.
10. Plastic raw material: PC PBT fire rating is UL 94-V0.
11. Terminal raw material: phosphor bronze.
12.RJ45 interface terminal: Gold-plated 3μ" ~ 50μ".

Certifications
