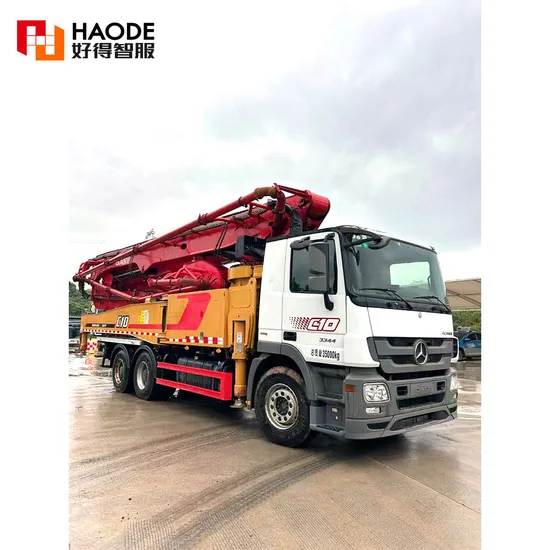

52m Pump Truck Used S-a-N-Y Concrete Pumps 2019 with Benz Chassis
| US$90,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
49m pump concrete
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
180m²/h
Feeding Height
1390mm
Vibrating Amplitude
1.0mm
Certification
ISO9001: 2000, CE
Condition
Used
Color
Red
Product Name
Pump Truck
Power
320kw
Engine Brand
Mercedes-Benz
49m Pump Concrete
Used
Max. Vertical Conveying Distance
50m
Year
2019
Unique Selling Point
High Operating Efficiency
Hydraulic System Type
Open Type System
Maximum Aggregate Size
40 mm
Weight
34000 Kg
Hopper Capacity
600 L
Power Type
Diesel
Max. Horizontal Conveying
50m
Theory Output Capacity
100 M3/H
Transport Package
Standard Package
Specification
12700 X 2550 X 4000 mm
Trademark
BEST
Origin
China
HS Code
8705909100
Production Capacity
10000 Piece/Pieces Per Month
Product Description
| Description | Unit | Parameter value | |
| Outline dimension | mm | 12510×2500×3990 | |
| Overall weight | kg | 33000 | |
| Chassis | Model | ZZ5347V484MC1 | |
| Max. speed | km/h | 90 | |
| Max. grade-ability | % | 40 | |
| Wheelbase | mm | 4800+1400 | |
| Tire | 315/80R22.5 | ||
| Engine | Model | MC11.40-30 | |
| Max. power | kW | 297 | |
| Max. torque | N·m/(r/min) | 1900/1000~1400 | |
| Displacement | L | 10.518 | |
| Emission standard | Eruo III | ||
| Pumping system | Theoretical output | m3/h | 170 |
| Concrete pumping pressure | MPa | 8 | |
| Theoretical pumping times | Time/min | 23~26 | |
| Delivery cylinder diameter ×stroke | mm | φ260×2000 | |
| Max. diameter of pumping concrete | mm | ≤40 | |
| Filling height | mm | 1580 | |
| Concrete slump range | cm | 8~23 | |
| Placing boom | Reach height | m | 47.5 |
| Reach depth | m | 34 | |
| Slewingradius | m | 43.5 | |
| Slewing angle | ° | ±270 | |
| Stabilizer span | Longitudinal span of stabilizer | mm | 8955 |
| Transverse span of front stabilizer | mm | 7884 | |
| Transverse span of rear stabilizer | mm | 9940 | |
