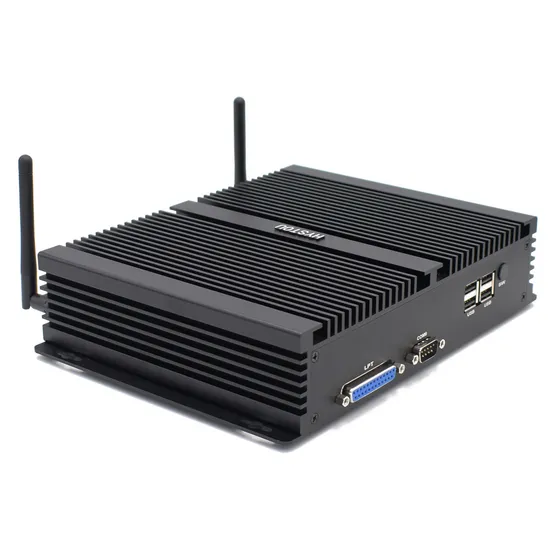

Hystou Core I5 Cheap 6RS232 COM Ports Fanless Office&Home Study Mini PC

Product Description

Product Description Details Images

Processor
CPU	Intel Core i5-8265U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.90 GHz)
TDP	15W
CPU Lithography	14 nm
Memory Specifications
Max Memory Size	64GB
Memory Types	260 pin DDR4 SO-DIMMs
Memory Channels	Dual Channels
ECC Memory	Don't support
Storage Specification
m.2 SSD	1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME)
SATA	2 x SATA3.0 for 2.5 inch HDD/SSD
mSATA	No mSATA slot
Graphics
Processor Graphics	Intel® UHD Graphics
HDMI	1 x HDMI 2.0 (4K)
DP Port	1 x DP
Power Specification
Power Adapter	12V Power Input, supply 12V 5A power adapter within the package
Auto Power On	Support Auto Power On Function
In & Out interfaces
USB Port	4 x USB 3.1 port, 4 x USB 2.0 port+1 x Type C 3.1
Audio	3.5mm 1 Jack, MIC in/ Line out
Video	HDMI+EDP+Type C, support 3 Synchronized displays
Power Input	5.5mm 12V In
Lan Port	2 x Intel-I210/I211 Gigabit RJ45 Lan
Com Port	4 x RS232 Com port, 2 x RS485 Com port

Company Introduction Hystou is a professional manufacturer and exporter of desktop mini PC. OEM and ODM orders are welcomed. The more you purchase, the cheaper the price. Product Usage Packing&Shipping Packing List: Normally we use the carton box, 5 or 10pcs per carton 1 x Mini PC 1 x Power adapter(correct power plug based on buyer's country) 1 x WiFi modlue with dual antennas(barebone not include WiFi) 1 x VESA bracket(some model not support) 1 x Sata power cable and data cable.(some model just support one Msata) 1 x Warranty card & user manual FAQ
