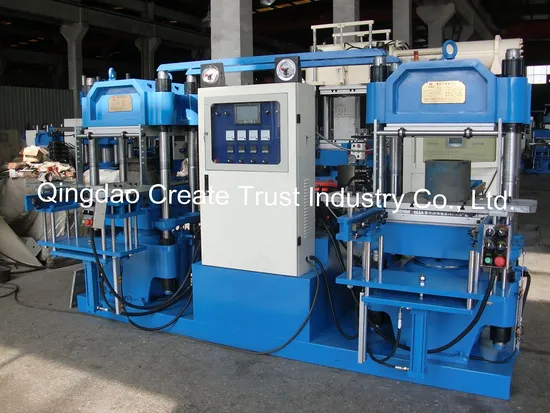

China Manufacturer Hot Sale Rubber Moulding Press/Rubber Molding Press

Product Description

China manufacturer hot sale Rubber moulding press/rubber molding press
We have ISO9001:2008,SGS,CE standard and offer all kinds of certification according to customer's request:like CO,CIQ,SASO and so on.
1.Material of steel plate:
We use hight quality carbon steel Q-235(produce by Jigang Group Co.,Ltd which is a famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel
2.Weldment of frame : world technique
Welded together as a whole part,Stewing fire treatment after weldment.
(Carbon dioxide gas shielded welding,alloyed welding wire).
submerged arc welding, VSR treatment after weldment.
3.Piston:
the material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.
4.Heating way&precision temperature control:
Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity)
range of temperature:0-300 °C (can be adjustment if you need 400 °C ,we can do it )
Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C
Also we can produce the machine with water cooling system.
5.Hydraulic system: (PLC control)
the professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.
We use OMRON,SIMENS CHNT , SCHNEIDER ect brand electric parts.
6.There are more advanced technical information as our core patents,and not showed in the description,please send email to us.
technical parameter:

Parameters/version	XLB350*350*2	XLB400*400*2	XLB500*500*2	XLB600*600*2/4	XLB750*850*2	XLB1000*1000*2
Mould closing force	0.25	0.5	0.8	1.0	1.6	2.5
Hot plate spacing	125	125	125	125	125	200
Hot plate layer	2	2	2	2/4	2	2
Plunger stroke	250	250	250	250/500	250	400
Heating way	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/Stream	Electricity/stream
Main motor power	2.2	2.2	2.2	2.2	3	5.5
The thermal power	2.4kw/board	3kw/board	3kw/board	7.5kw/board	9kw/board	10.8kw/board
Size(l*w*h)	1450*400*1350	1600*400*1440	1450*690*1818	1880*780*1660	2100*1010*1900	2400*960*2500
Weight(kg)	1200	1500	1700	2500/3100	3560/4300	8300

RUBBER VULCANIZING PRESS FAQ :
1,Are you manufacturer?
Yes,we are BV approved rubber products manufacturer in China.
2,Can you design new product for us?
Yes,we have a professional development team that make new products according to your requirements.
4,What's your payment term?
Common is 30% deposit by T/T,the balance paid against shipping documents.
Or L/C at sight.
5,Are you near to Qingdao airport?
Yes,only within 1.5hours.
And within 1 hour to Qingdao sea port.
50 minutes to Qingdao Railway Station.
6,Do you have any certificate of your products?
Yes, CE, BV, SGS
7.We,Qingdao Create Trust Industry Co., Ltd.make good quality rubber machine, from materials to producing, we use the good quality material, complete management system, also excellent after sale service, we hope to be one reliable factory for you!
---1.It has specialized in rubber machinery for nearly 30 years;
---2.It is a 100% real manufacturer, rather than a trading company;
---3.We give 36 months quality guarantee and long-term technical support.
8. Service of us
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
