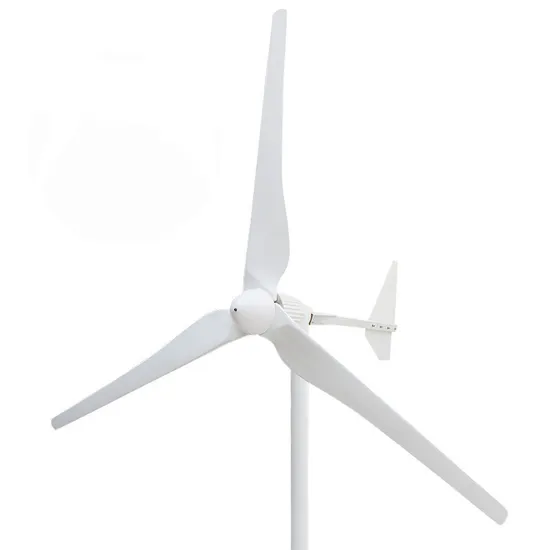

Household Commercial Three Phase 220V 5kw Horizontal Axis Wind Turbine Generator

Product Description

Household Commercial Three Phase 220V 5kw Horizontal Axis Wind Turbine Generator
Product Feature «Blades are made of high strength nylon composite materials, high strength. «One-time die casting mold, the weight error is small, high efficiency. «Use imported from Japan NSK Bearings, high efficiency, wear, durable up to 20 years. «Use bubbles with high temperature line, the high temperature up to 180ºC. «Use of Rare earth NdFeB permanent magnet, high efficiency and light weight, low energy consumption, high output power. «Unique tail design, automatic alignment direction of the wind, increase the output power. Product Parameters

Rated power	3000W	5000W	10000W	10KW	15KW	20KW
Maximum power	3500W	5700W	10500W	13000W	18000W	25000W
Rated voltage	120V/220V	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V
Rotor diameter	4.9m	5.8m	6.3m	7.7m	9.7m	11.8m
Start up wind speed	3m/s	3m/s	3m/s	3m/s	3m/s	3m/s
Rated wind speed	10.5m/s	11m/s	12m/s	10.5m/s	11.5m/s	11.5m/s
Survival wind speed	45m/s	45m/s	45m/s	45m/s	45m/s	45m/s
Wheel height	9/12m	9/12m	12/15m	12/15m	15/18m	15/18m
Blades material	Die Cast Aluminum		Aluminum alloy	Die Cast Aluminum
Number of blades	3
Generator	Three phase permanent magnet AC generator/maglev generator
Control system	Electromagnet
Speed regulation	Automatically adjust windward
Working temperature	-40°C~80ºC

Detailed Photos
Working Structure
Company Profile
Certifications
FAQ Q: Does the System Installation Easy?
A:Very easy, every customer can do it by themselves, we will supply all the components for installation and very detailed manual for you. If you still have confusion, our technician could support you all the time by video to make sure there is no mistake of connection.
Q: Distance between wind turbine, controller and battery?
A: Normally better within 10m from wind turbine to controller, and controller to batteries, Batteries and inverter to load within 20-50m.
Q:Which model should I choose?
A: If you are not sure to choose the model, please contact our sales with the following points:
1. What appliance do you want to run by the system? How many watts are they? How long do they work?
2. Your annual average wind speed .
3. What kind of system do you want? On-grid or off-grid?
Q:Can I only buy parts of the whole system?
A: Yes, you can only buy wind turbine, controller, inverter etc.
