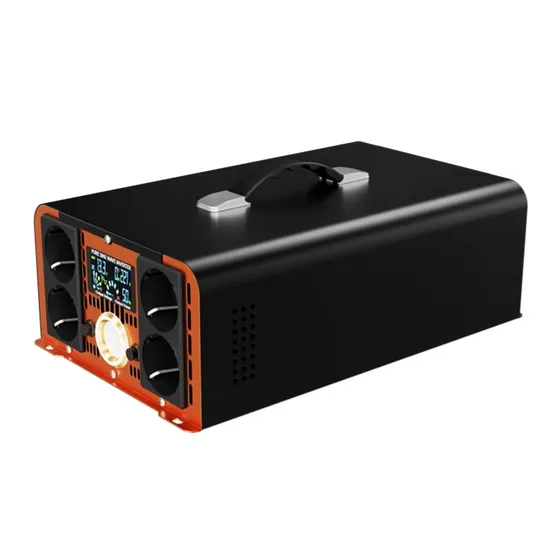

5000W Home Use Pure Sine Wave Inverter Solar Power Inverter

Product Description

Product Description

Model	HPGC0015U	HPGC0020U	HPGC0025U	HPGC0030U	HPGC0050U
Rated power	1500W	2000W	2500W	3000W	5000W
Peak power	3000W	4000W	5000W	6000W	10000W
Input voltage	12V OR 24V
Output voltage	110VAC ±5% or 220VAC ±5%
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure Sine Wave
Waveform distortion	THD<3%(Linear load)
Max.efficiency	92%
Working temperature	-10°- +50°
Storage temperature	-30°- +70°
Warranty	1 years
Cooling method	Intelligent air cooling

FAQ
1. Do you have your own factory?
A: Yes, we are a professional inverter manufacturer with a history of about 10 years.
................................................................................................................................................................
2. Q: What is a resistive load appliance?
A: Generally speaking, mobile phones, computers, LCD TVs, incandescent lamps, electric fans, video players, small printers, electric mahjong machines, rice cookers and other appliances are resistive loads, and our company's modified sine wave inverter can successfully drive these appliances.
................................................................................................................................................................
3. Q: What is an inductive load appliance?
A: It refers to the inductance generated by high-power electrical products using the principle of electromagnetic induction, such as motors, compressors, relays, fluorescent lamps, electric stoves, refrigerators, air conditioners, energy-saving lamps, water pumps, etc. The power generated when these products are started is far more than the rated power (about 3-7 times). Therefore, they can only use pure sine wave inverters.
................................................................................................................................
4. Q: What is the difference between maximum power and rated power?
A: Maximum power: refers to the power that the inverter can withstand when starting, generally refers to the motor type load. At startup, due to the large starting current, the instantaneous starting power is the largest.
Rated power: refers to the power that the inverter can work continuously under normal circumstances.
If you don't know how to choose the specification, please be sure to contact customer service. It will be our honor to make suggestions.
After Sales Service
Seller warranty: 1 year
