Unshielded Shielded Fire Resistant Cable and Alarm Wire Cable
| US$0.04-0.50 | 10,000 Meters (MOQ) |
Basic Info.
Model NO.
alarm cable
Cover Material
PVC
Type
Coaxial
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS
Model
Rvv
Brand
Fuu
Transport Package
100m
Specification
12awg Conductor
Origin
China
HS Code
8544200000
Production Capacity
3500km/Month
Product Description

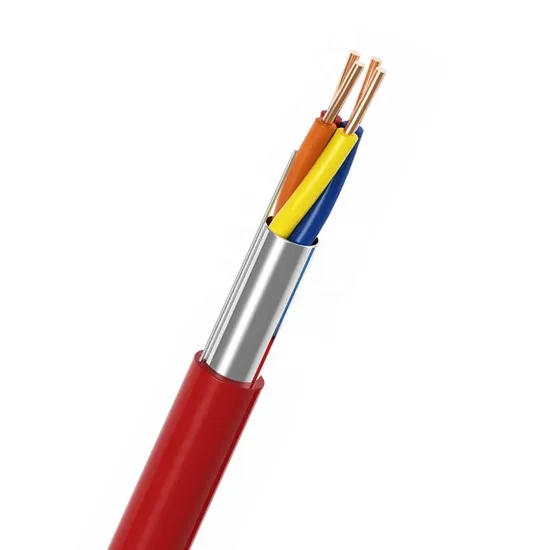

Unshielded shielded fire resistant cable and alarm wire cable
Alarm Cable/Control Cable
- Conductor Material: CU/CCA
- Insulation Material: PVC
- Insulation Diameter: 1mm/1.5mm
- Drian Wire Material: N/A
- Jacket Material: PVC
- Signal Shield: Al/Polyester Foil; Coverage>100%.
- Double Fully Shield: Al/Polyester Foil + Tinned Copper Braid
Fire Cable/Fire Alarm Cable
- Conductor Material: CU
- Insulation Material: PVC
- Insulation Diameter: 1.8mm/2.15mm/2.40mm/2.80mm
- Drian Wire Material: 0.5mm CU
- Jacket Material: PVC
- Signal Shield: Al/Polyester Foil; Coverage>100%
Alarm Cable/Control Cable
| Cable Size | Specification | Overall Diameter |
| 2x0.22mm² | 2x7/0.20 | 3.0mm |
| 4x0.22mm² | 4x7/0.20 | 3.5mm |
| 6x0.22mm² | 6x7/0.20 | 4.1mm |
| 8x0.22mm² | 8x7/0.20 | 4.5mm |
| 10x0.22mm² | 10x7/0.20 | 5.2mm |
| 12x0.22mm² | 12x7/0.20 | 5.6mm |
| 14x0.22mm² | 14x7/0.20 | 5.8mm |
| 20x0.22mm² | 20x7/0.20 | 6.8mm |
| 2x0.50mm² | 2x16/0.20 | 4.5mm |
| 4x0.50mm² | 4x16/0.20 | 5.2mm |
| 6x0.50mm² | 6x16/0.20 | 6.0mm |
| 8x0.50mm² | 8x16/0.20 | 6.8mm |
| 10x0.50mm² | 10x16/0.20 | 7.6mm |
| 12x0.50mm² | 12x16/0.20 | 8.0mm |
| Cable Size | Specification | Overall Diameter |
| 2x0.5mm² | 2x0.8mm | 4.80mm |
| 2x2x0.5mm² | 4x0.8mm | 6.00mm |
| 2x1.0mm² | 2x1.15mm | 5.30mm |
| 2x2x1.0mm² | 4x1.15mm | 6.60mm |
| 2x1.5mm² | 2x1.40mm | 5.90mm |
| 2x2x1.5mm² | 4x1.40mm | 7.20mm |
| 2x2.5mm² | 2x1.80mm | 6.80mm |
| 2x2x2.5mm² | 4x1.80mm | 8.00mm |
1)Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll.
2) Inner packing:Roll, Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
