Pontoons for Famous Brand Excavator Working in Swamp
| US$30,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KUDAT150PB
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Matched Excavator Class (Tons)
10-13
Length (mm)
7004
Travel Speed (Km/H)
1300
Height (mm)
1643
Overall Width(mm)
4235
Chains System
2 Chains
Travel Motor Brand and Model
Two Doosan TM40vc
Total Weight (Kgs)
10100
Transport Package
Bulk
Specification
SGS
Trademark
KUDAT
Origin
China
Production Capacity
500PCS/Year
Product Description

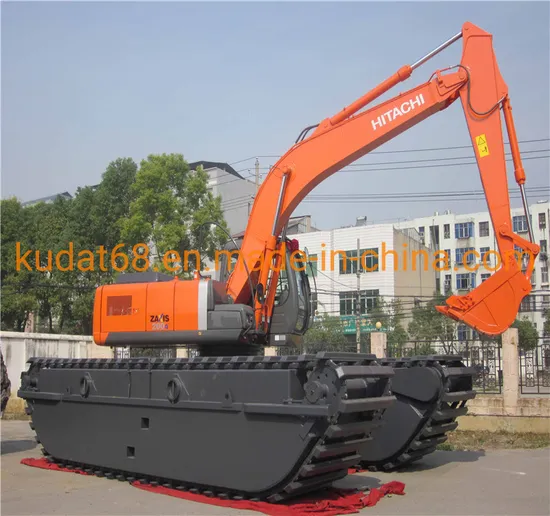

KUDAT standard amphibious excavator undercarriage pontoons including two pieces of pontoons (left &right), one mounting frame and two pieces of connection beams. These standard pontoons can be connected with any type of upper structure,such as Caterpillar, Hitachi, Komatsu, Kobelco, SANY...etc. And all they are only suitable to work on shallow water of depth less than 1.5 meters.Technical specification of KUDAT standard pontoons:
| Model | KUDAT80PB | KUDAT150PB | KUDAT200PB | KUDAT210P | KUDAT240P | KUDAT240FBP | KUDAT330PB |
| Matched Excavator class (tons) | 6-8 | 10-13 | 15-20 | 18-22 | 23-26 | 23-26 | 30-36 |
| A.Length (mm) | 5459 | 7004 | 7531 | 8664 | 9744 | 10134 | 10656 |
| B.Width (mm) | 1300 | 1300 | 1420 | 1810 | 1810 | 1700 | 1810 |
| C.Height (mm) | 1643 | 1643 | 1885 | 1735 | 1735 | 1800 | 1735 |
| D.Overall width(mm) | 4235 | 4235 | 4355 | 5795 | 5795 | 6099 | 5795 |
| Chains system | 2 Chains | 2 Chains | 2 Chains | 3 Chains | 3 Chains | 3 Chains | 3 Chains |
| Travel motor brand and model | Two Doosan TM22VC | Two Doosan TM40VC | Two Doosan TM40VC | Two Doosan TM60VC | Two Doosan TM70VC | Two Doosan TM70VC | Four Doosan TM40VC |
| Total weight (kgs) | 9400 | 10100 | 13200 | 20300 | 22800 | 22300 | 26800 |
Optional design of the undercarriage pontoons
Side pontoons and spuds: designed for deep water of depth 2m-5m
The side pontoons and spuds can be selected to install at side of main pontoons in order to work on deep water from 2 meters to 5 meters. Spuds length is designed according to the depth of water.
The spuds move up and down by driving motor and lay down by cylinders. There are two types: full-automatic type and semi-automatic type.
Extendable and retracted pontoons: designed for complete transportation without dis-assembly or narrow working place.
The width of the undercarriage pontoons can be flexible from 4.3m to 5.3m by hydraulic cylinder or mechanically by buckets.
