Double Spindle Compound Machine Zxs4625

Product Description

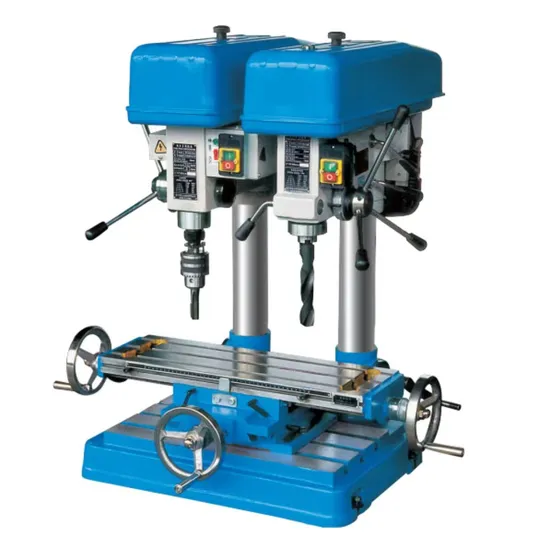

DOUBLE-SPINDLE COMPOUND MACHINE ZXS4625
Characters:
Combined function with drilling-reaming, drilling-millingaccordingto customers requirement.Both drilling and tapping haveautomatic feeding.Worktable automatic orientation,effective and pecise.Save time for tool replacement,improve the working efficiency.
Specification:

Model No.	ZH30
Item No.
Moving
Max.drilling capacity	25 mm
Max.tapping capacity	M24/M20
Max.Face Mill Capacity	63 mm
Diameterof verticalmilling	13 mm
Spindle
Spindle travel	125/110 mm
Head travel	440 mm
Distance spindle axis to column generating line	280 mm
Distance spindle nose to worktable	75-510 mm
Spindle taper	MT3
Spindle speeds range	290~2150 r/min
Spindle speeds series	5
Dimension ofworktable surface	640x205 mm
Dimension of base	650x600 mm
Table travel	370x150 mm
Other
Overall height	1130 mm
Main motor	750(6P) W
Packing dimension	93x85x105 cm
G.W/ N.W.	320/280 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
