Big Discountl Small Scale Portable Gold Mining Trommel Screen Washing Plant

Product Description

Product Description

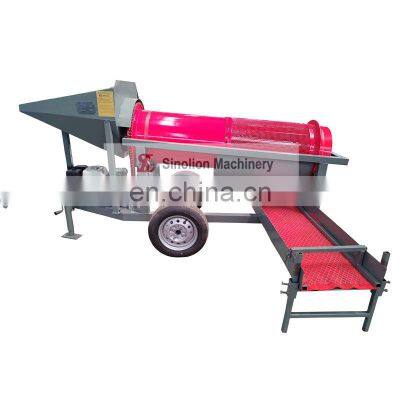

Gold processing plant equipment gold washing trommel screen machineProduct DescriptionThe mini gold screen equipment is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein.it can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on. Placer gold trommel is composed of feeding hopper, screen drum, gold chute, wheels. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad. The first section of mini gold trommel is l 910mm steel drum, the second section is 840mm with manganese wire mesh, aperture 5mm,while the third section steel reel 160mm,Round steel diameter 10mm, small opening 50mm, tire diameter , four tires, one axle.It is equipped with HONDA diesel engine, with reducer, chain, leg, roller. The width of the discharge tank is 400mm and the length 1500mm contains gold panning grass. Characteristics:1.Complete screen self cleaning function 2. The machine can effectively control the screening size function, can achieve high precision screening, to achieve the best screening effect.3. The outlet of the machine can be adjusted arbitrarily. Sieve out of the material can be directly discharged, suitable for automated operations.4. Simple structure, convenient installation, light weight; Reliable operation, long life; Low power consumption.5. The screen mesh is not blocked, no flying powder, no leakage, fully sealed structure, environmental protection.6. Fine powder, particle and liquid can pass through without blocking.7. The cylinder is made of thick stainless steel, with long service life Technical ParametersSPECIFICATIONS OF PORTABLE MOBILE GOLD WASH TROMMELModelGTS-500x1900Drum Diameter 500mmDrum Length 1900 mmGearbox WPS-100-20Towing Hook IncludeTires Size 165/70RBRubber Tires Quantity 4 piecesSpray Pipe Diameter 42mmSpray Pipe Material Galvanized seamless pipeCapacity 5-10 tons/hour HONDA Gasoline Engine Main Power:5.5HP Start method: Manual pull Gasoline load: 0.58LGold Chute 350*1500mm Angle adjustable 2-8° Grizzly Steel bard diameter 20mm Bar spacing 50mm Input hopper: 0.5m³ Product DetailsPackaging & ShippingCompany InformationCustomerFAQQ1: How long is the delivery time A: Normally within 7-10days Q2: What is the driving force A: Japan HTC Gasoline Engine Q3: How long is the warranty period A:One year Q4: Do you have a certificate of origin, EU certification, etc.A: yes, of course Q5: How many wheels does it have? A:There are two and four rounds, according to customer requirements. Related ProductsGold Trommel ScreenCentrifugal concentratorShaking Table
