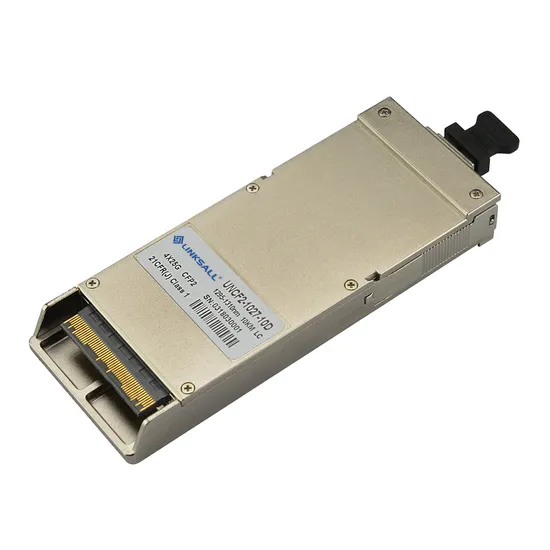

Cfp2 Juniper Networks Cfp2-100g-Lr4-D Compatible 100gbase- Lr4 1310nm 10km Transceiver Module

Product Description

100GBASE-LR4 1310nm 10km Transceiver Module
PRODUCT FEATURES Compliant with 100GBASE-LR4 Support line rates from 103.125 Gbps to 111.81 Gbps Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF CAUI(10x10G) Electrical Interface and 4-lane 25.78Gb/s optical interface Duplex LC optical receptacle MDIO Interface for module management Single 3.3 V power supply Case operating temperature range:0°C to 70°C Power dissipation < 12W APPLICATIONS Data Center &100G Ethernet ITU-T OTU4 STANDARD Compliant to IEEE 802.3ba Compliant to CFP MSA Hardware Specification Compliant to CFP MSA Management Interface Specification General Description
LACF-0429-LR is the optical transceiver module which is a hot pluggable form factor designed for high speed optical networking application. It is designed for 100 Gigabit Ethernet application and provides 100GBASE-LR4 compliant optical interface, CAUI electrical interface and MDIO module management interface. LACF-0429-LR converts 10-lane 10.3Gb/s electrical data streams to 4-lane LAN-WDM 25.78Gb/s optical output signal and 4-lane LAN-WDM 25.78Gb/s optical input signal to 10-lane 10.3Gb/s electrical data streams. This 10-lane 10.3Gb/s electrical signal is fully compliant with IEEE 802.3ba CAUI specification. The high performance Cooled LAN-WDM EA-DFB transmitter and high sensitivity PIN receiver provide superior performance for 100Gigabit Ethernet applications up to 10km links and compliant optical interface with IEEE802.3ba 100GBASE-LR4 requirements.
The LACF-0429-LR contains a duplex LC connector for the optical interface and a 148-pin connector for the electrical interface. Figure 1 shows the functional block diagram of LACF-0429-LR.
Figure 1. CFP LR4 Optical Transceiver functional block diagram
Transmitter
The transceiver module receives 10-lane 10.3 Gb/s CAUI electrical inputs. The gearbox multiplexes 10-lane electrical signals to 4-lane electrical signals. The multiplexed 4-lane signals are fed to the transmitters. The four transmitters convert 4-lane signals to an optical signal through 4 Laser drivers and Lasers diodes which are packaged in the Transmitter Optical Sub-Assembly (TOSA). Each Laser launches optical signal in specific wavelength specified in IEEE802.3ba 100GBASE-LR4 requirements. These 4-lane optical signals will be optically multiplexed into one fiber by 4 to1 Optical WDM MUX which is in the TOSA. The optical output power is held constant by an automatic power control (APC) circuit. The transmitters output can be turned off by TX_DIS hardware signal and/or through MDIO module management Interface.
Receiver
The LACF-0429-LR receives 4-lane LAN WDM optical signals. The optical signals are de-multiplexed by 1 to 4 optical DE-MUX and fed into each Receiver Optical Sub-Assembly(ROSA)integrated 1:4 optical DE-MUX. The ROSA converts optical signal to electrical signal. The 4-lane regenerated electrical signals are de-multiplex to 10-lane signals by the 4 to 10 gearbox. The 10-lane signals are compliant with IEEE CAUI interface requirements. Each received optical signal is monitored by the DOM section. The monitored value is reported through the MDIO section. If one or more received optical signal is weaker than the threshold level, RX_LOS hardware alarm will be launched.
CFP Pin Map Orientation
Figure 2 CFP LR4 optical transceiver pin-out
Table 1 CFP optical transceiver pin descriptions

Pin no.	Name	Logic	Description
1	3.3V_GND		3.3V Module Supply Voltage Return Ground, can be separate or tied together with Signal Ground
2	3.3V_GND
3	3.3V_GND
4	3.3V_GND
5	3.3V_GND
6	3.3V
7	3.3V
8	3.3V
9	3.3V
10	3.3V
11	3.3V
12	3.3V
13	3.3V
14	3.3V
15	3.3V
16	3.3V_GND		3.3V Module Supply Voltage Return Ground, can be separate or tied together with Signal Ground
17	3.3V_GND
18	3.3V_GND
19	3.3V_GND
20	3.3V_GND
21	NUC		Module Vendor I/O. Must No Connect at host board
22	NUC		Module Vendor I/O. Must No Connect at host board
23	GND
24	TX_M CLKn		TX Monitor Clock Output (Negative)
25	TX_M CLKp		TX Monitor Clock Output (Positive)
26	GND
27	NUC		Module Vendor I/O. Must No Connect at host board
28	NUC		Module Vendor I/O. Must No Connect at host board

Pin no.	Name	Logic	Description
29	NUC		Module Vendor I/O. Must No Connect at host board
30	PRG_CNTL1	LVCMOS w/ PUR	Programmable Control 1 set over MDIO, M SA Default: TRXIC_RSTn, TX & RX ICs reset, "0": reset, "1" or NC: enabled = not used
31	PRG_CNTL2	LVCMOS w/ PUR	Programmable Control 2 set over MDIO, M SA Default: Hardware Interlock LSB,"00": ≤8W, "01":≤16W, "10": ≤24W, "11" or NC: ≤32W = not used
32	PRG_CNTL3	LVCMOS w/ PUR	Programmable Control 2 set over M DIO, M SA Default: Hardware Interlock M SB,"00": ≤8W, "01":≤16W, "10": ≤24W, "11" or NC: ≤32W = not used
33	PRG_ALRM 1	LVCM OS	Programmable Alarm 1 set over MDIO, M SA Default: HIPWR_ON, "1": module, power up completed, "0": module not high powered up
34	PRG_ALRM 2	LVCM OS	Programmable Alarm 2 set over MDIO, M SA Default: M OD_READY, "1": Ready, "0":not Ready,
35	PRG_ALRM 3	LVCM OS	Programmable Alarm 3 set over MDIO, M SA Default: M OD_FAULT, fault detected,1": Fault, "0": No Fault
36	TX_DIS	LVCM OS w/ PUR	Transmitter Disable for all lanes, "1" or NC = transmitter disabled, "0" = transmitter enabled
37	MOD_LOPWR	LVCM OS w/ PUR	Module Low Power M ode. "1" or NC: module in low power (safe) mode, "0": power- on enabled
38	MOD_ABS		Module Absent. "1" or NC: module absent, "0": module present, Pull Up Resistor on Host
39	MOD_RSTn	LVCM OS w/ PUR	Module Reset. "0" resets the module, "1" or NC = module enabled, Pull Down Resistor in Module
40	RX_LOS	LVCM OS	Receiver Loss of Optical Signal, "1": low optical signal, "0": normal condition
41	GLB_ALRM n	LVCM OS	Global Alarm. "0": alarm condition in any M DIO Alarm register, "1": no alarm condition, Open Drain, Pull Up Resistor on Host
42	PRTADR4	1.2V CM OS	M DIO Physical Port address bit 4
43	PRTADR3	1.2V CM OS	M DIO Physical Port address bit 3
44	PRTADR2	1.2V CM OS	M DIO Physical Port address bit 2
45	PRTADR1	1.2V CM OS	M DIO Physical Port address bit 1
46	PRTADR0	1.2V CM OS	M DIO Physical Port address bit 0
47	M DIO	1.2V CM OS	Management Data I/O bi-directional data (electrical specs as per 802.3ae and ba)
48	M DC	1.2V CM OS	Management Data Clock (electrical specs as per 802.3ae and ba)
49	GND
50	NUC		Module Vendor I/O. Must No Connect at host board
51	NUC		Module Vendor I/O. Must No Connect at host board
52	GND
53	NUC		Module Vendor I/O. Must No Connect at host board
54	NUC		Module Vendor I/O. Must No Connect at host board

	Pin no.		Name		Logic		Description
55			3.3V_GND				3.3V Module Supply Voltage Return Ground, can be separate or tied together with Signal Ground
56			3.3V_GND
57			3.3V_GND
58			3.3V_GND
59			3.3V_GND
60			3.3V				3.3V Module Supply Voltage
61			3.3V
62			3.3V
63			3.3V
64			3.3V
65			3.3V
66			3.3V
67			3.3V
68			3.3V
69			3.3V
70			3.3V_GND				3.3V Module Supply Voltage Return Ground, can be separate or tied together with Signal Ground
71			3.3V_GND
72			3.3V_GND
73			3.3V_GND
74			3.3V_GND
75			3.3V_GND
	76		RX_MCLKp				RX Monitor Clock Output (Positive)
	77		RX_MCLKn				RX Monitor Clock Output (Negative)
	78		GND
	79		RX0p		HS I/O		Lane 0 Receiver Output (Positive)
	80		RX0n		HS I/O		Lane 0 Receiver Output (Negative)
	81		GND
	82		RX1p		HS I/O		Lane 1 Receiver Output (Positive)
	83		RX1n		HS I/O		Lane 1 Receiver Output (Negative)
	84		GND
	85		RX2p		HS I/O		Lane 2 Receiver Output (Positive)
	86		RX2n		HS I/O		Lane 2 Receiver Output (Negative)
	87		GND
	88		RX3p		HS I/O		Lane 3 Receiver Output (Positive)
		89		RX3n		HS I/O		Lane 3 Receiver Output (Negative)
		90		GND
		91		RX4p		HS I/O		Lane 4 Receiver Output (Positive)
		92		RX4n		HS I/O		Lane 4 Receiver Output (Negative)
		93		GND
		94		RX5p		HS I/O		Lane 5 Receiver Output (Positive)
		95		RX5n		HS I/O		Lane 5 Receiver Output (Negative)
		96		GND
		97		RX6p		HS I/O		Lane 6 Receiver Output (Positive)
		98		RX6n		HS I/O		Lane 6 Receiver Output (Negative)
		99		GND
		100		RX7p		HS I/O		Lane 7 Receiver Output (Positive)
		101		RX7n		HS I/O		Lane 7 Receiver Output (Negative)
		102		GND
		103		RX8p		HS I/O		Lane 8 Receiver Output (Positive)
		104		RX8n		HS I/O		Lane 8 Receiver Output (Negative)
		105		GND
		106		RX9p		HS I/O		Lane 9 Receiver Output (Positive)
		107		RX9n		HS I/O		Lane 9 Receiver Output (Negative)
		108		GND
		109		NC				Not Connected Internally
		110		NC				Not Connected Internally
		111		GND
		112		GND
		113		TX0p		HS I/O		Lane 0 Transmitter Input (Positive)
		114		TX0n		HS I/O		Lane 0 Transmitter Input (Negative)
		115		GND
		116		TX1p		HS I/O		Lane 1Transmitter Input (Positive)
		117		TX1n		HS I/O		Lane 1 Transmitter Input (Negative)
		118		GND
		119		TX2p		HS I/O		Lane 2Transmitter Input (Positive)
		120		TX2n		HS I/O		Lane 2 Transmitter Input (Negative)
		121		GND
		122		TX3p		HS I/O		Lane 3 Transmitter Input (Positive)
		Pin no.		Name		Type		Description
		123		TX3n		HS I/O		Lane 3Transmitter Input (Negative)
		124		GND
		125		TX4p		HS I/O		Lane 4 Transmitter Input (Positive)
		126		TX4n		HS I/O		Lane 4 Transmitter Input (Negative)
		127		GND
		128		TX5p		HS I/O		Lane 5 Transmitter Input (Positive)
		129		TX5n		HS I/O		Lane 5 Transmitter Input (Negative)
		130		GND
		131		TX6p		HS I/O		Lane 6 Transmitter Input (Positive)
		132		TX6n		HS I/O		Lane 6 Transmitter Input (Negative)
		133		GND
		134		TX7p		HS I/O		Lane 7Transmitter Input (Positive)
		135		TX7n		HS I/O		Lane 7 Transmitter Input (Negative)
		136		GND
		137		TX8p		HS I/O		Lane 8 Transmitter Input (Positive)
		138		TX8n		HS I/O		Lane 8Transmitter Input (Negative)
		139		GND
		140		TX9p		HS I/O		Lane 9 Transmitter Input (Positive)
		141		TX9n		HS I/O		Lane 9 Transmitter Input (Negative)
		142		GND
		143		NC				Not Connected Internally
		144		NC				Not Connected Internally
		145		GND
		146		REFCLKp				Reference Clock Input (Positive)
		147		REFCLKn				Reference Clock Input (Negative)
		148		GND

Absolute Maximum Ratings

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Storage Temperature	Ts	-40	-	85	ºC
Relative Humidity	RH	5	-	95	%
Power Supply Voltage	VCC	-0.3	-	4	V
Signal Input Voltage		Vcc-0.3	-	Vcc+0.3	V
Receive Input Optical Power (Damage threshold)	Pdmg			5.5	dBm

Low Speed Electrical Characteristics

Parameter

Symbol

Min

Typ.

Max

Unit

Notes

Supply currents and voltages

Voltage

Vcc

3.2

3.3

3.4

V

With Respect to GND

Supply current

Icc

3.6

A

Power dissipation

Pwr

12.0

W

Power dissipation (low power mode)

Plp

2.0

W

Low speed control and sense signals, 3.3 V LVCMOS

Outputs low voltage

VOL

-0.3

0.2

V

Output high voltage

VOH

Vcc-0.2

Vcc+0.3

V

Input low voltage

VIL

-0.3

0.8

V

Input high voltage

VIH

2

Vcc+ 0.3

V

Input leakage current

IIN

-10

10

μA

Low speed control and sense signals, 1.2 V LVCMOS

Outputs low voltage

VOL

-0.3

0.2

V

Output high voltage

VOH

1.0

1.5

V

Input low voltage

VIL

-0.3

0.36

V

Input high voltage

VIH

0.84

1.5

V

Input leakage current

IIN

-100

100

μA

MDIO Management Interface The LACF-0429-LR supports the MDIO interface specified in IEEE802.3 Clause 45. This 2-wire management data I/O interface is provided for the module status monitoring and control. The management data clock (MDC) provides clocking for the data that is passed on the MDIO port. Five further pins allow for loading of a port address (PORT_ADDR0-4) into the module. The CFP transceiver supports MDIO pages 8000h NVR 1 Based ID registers, 8080h NVR 2 Extended ID registers, 8100h NVR 3 network lane specific registers , and pages A000h CFP module VR 1 registers,A080h MLG VR 1 registers, A200h network lane VR 1 registers,A280h network lane VR 2 registers.
Details of the protocol and interface are explicitly described in CFP MSA Management Interface Specification. Please refer to the specifications for design reference.

Starting Address in Hex	Ending Address in Hex	Access Type	Allocated Size	Data Bit Width	Table Name and Description
0000	7FFF	N/A	32768	N/A	Reserved for IEEE 802.3 Use.
8000	807F	RO	128	8	CFP NVR 1. Basic ID registers.
8080	80FF	RO	128	8	CFP NVR 2. Extended ID registers.
8100	817F	RO	128	8	CFP NVR 3. Network lane specific registers.
8180	81FF	RO	128	8	CFP NVR 4.
8200	83FF	RO	4x128	N/A	MSA Reserved.
8400	847F	RO	128	8	Vendor NVR 1. Vendor data registers.
8480	84FF	RO	128	8	Vendor NVR 2. Vendor data registers.
8500	87FF	RO	6x128	N/A	Reserved by CFP MSA.
8800	887F	R/W	128	8	User NVR 1. User data registers.
8880	88FF	R/W	128	8	User NVR 2. User data registers.
8900	8EFF	RO	12x128	N/A	Reserved by CFP MSA.
8F00	8FFF	N/A	2x128	N/A	Reserved for User private use
9000	9FFF	RO	4096	N/A	Reserved for vendor private use.
A000	A07F	R/W	128	16	CFP Module VR 1. CFP Module level control and DDM registers.
A080	A0FF	R/W	128	16	MLG VR 1. MLG Management Interface registers
A100	A1FF	RO	2x128	N/A	Reserved by CFP MSA.
A200	A27F	R/W	128	16	Network Lane VR 1. Network lane specific registers.
A280	A2FF	R/W	128	16	Network Lane VR 2. Network lane specific registers.
A300	A37F	R/W	128	16	Network Lane VR 3. Network Lane n Vendor Specific FAWS Registers
A380	A3FFF	RO	128	N/A	Reserved by CFP MSA
A400	A47F	R/W	128	16	Host Lane VR 1. Host lane specific registers.
A480	ABFF	RO	15x128	N/A	Reserved by CFP MSA.
AC00	AFFF	R/W	8x128	16	Common Data Block Registers
B000	BFFF	R/W	32x128	16	Allocated for OIF MSA-100GLH modules
C000	FFFF	RO	4x4096	N/A	Reserved by CFP MSA.

Optical Transmitter Characteristics

Parameter	Symbol	Min	Typ.	Max	Unit	Notes
Signaling rate, each lane			25.78125		GBd
Lane wavelength(range)		1294.53	1295.56	1296.59	nm
		1299.02	1300.05	1301.09	nm
		1303.54	1304.58	1305.63	nm
		1308.09	1309.14	1310.19	nm
Rate tolerance		-100		100	ppm	From nominal rate
Side-mode suppression ratio	SMSR	30			dB
Total launch power				10.5	dBm
Average launch power, each lane	Pavg	-4.3		4.5	dBm
Extinction Ratio	ER	4	8.2		dB
Optical modulation amplitude, each lane (OMA)	OMA	-1.3		4.5	dBm
Difference in launch power between any two lanes (OMA)				5	dB
Transmitter and Dispersion Penalty, each lane	TDP			2.2	dB
OMA minus TDP, each lane	OMA-TDP	-2.3			dBm
Average launch power of OFF transmitter, each lane				-30	dBm
Relative Intensity Noise	RIN20O MA			-130	dB/Hz
Transmitter reflectance				-12	dB
Transmitter eye mask {X1, X2, X3, Y1, Y2, Y3}		{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}

Optical Receiver Characteristics

Parameter	Symbol	Min	Typ.	Max	Unit	Notes
Signaling rate, each lane			25.78125		GBd
Rate tolerance		-100		100	ppm	From normal rate
Average receive power, each lane	Pavg	-10.6		4.5	dBm
Receive power, each lane (OMA)				4.5	dBm
Difference in receiver power between any two lanes (OMA)				5.5	dB
Receiver Sensitivity (OMA), each lane	Rsen			-8.6	dBm	1
Stressed Receiver Sensitivity (OMA), each lane	SRS			-6.8	dBm
Stressed receiver sensitivity test conditions
Vertical eye closure penalty, each lane	VECP		1.8		dB
Stressed sys J2 jitter, each lane	J2		0.3		UI	2
Stressed sys J9 jitter, each lane	J9		0.47		UI	2
Receiver reflectance				-26	dB
LOS Assert	Plos_on		-18		dBm
LOS Deassert	Plos_off		-15		dBm
LOS Hysteresis		0.5			dB
Receiver sensitivity (OMA), each lane, is informative. Vertical eye closure penalty, stressed eye J2 Jitter, and stressed eye J9 Jitter are test conditions for measuring stressed receiver sensitivity. They are not characteristics of the receiver.
