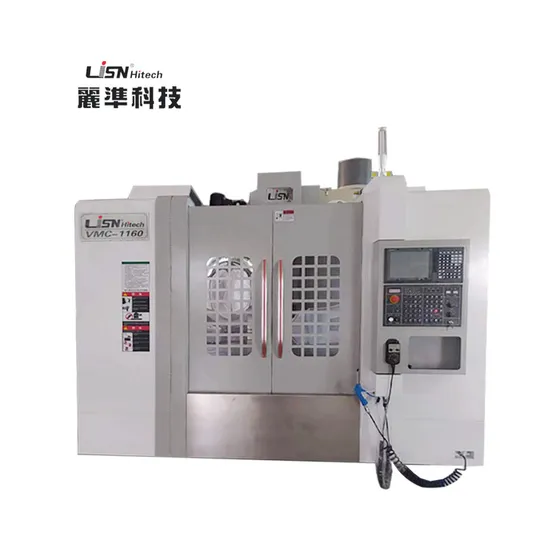

Vmc640 Vmc1160 Vertical Machining Center

Product Description

Product Description
1. All the castings adopt high quality and high stability Chinese Meehannite cast iron and digitizing metal formula to guarantee the quality of castings. FEM analysis is used to analyze castings and computer is used to figure up and analyze so as to strengthen the design of organization structure, enhance the rib configuration, optimize the casting structure and improve the rigidity of whole machine.2."A" type column has bigger span in base to ensure rigidity,strength and stability.3.Saddle is wider and thicker to guarantee the ability of heavy duty when processing.4.In spindle box, rib is reinforced to strengthen the contact surface between spindle box and column and provides great support.5.All the parts are Chinese components to guarantee the durability,rigidity and long-term stability of machine.
6.Large lead precision ball lead screw match with precision bevel angle ball bearing pre-tighten installment, feed precision, load is strong.
Product Parameters

Item	Specifications	MODELS→	VMC640	VMC1160
Travel Range	X/Y/Z Axis Travel	mm	650/430/450	1200/600/600
	Distance From Spindle Nose To worktable	mm	150-600	150-750
Worktable	Worktable (WidthxLength)	mm	420x700	1360x600
	Max Load Bearing Of Worktable	kg	200	800
	T-Slot(number of SlotxSlot WidthxPitch)	mm	3x18x150	5x18x100
Spindle	Spindle Hole Taper	type	BT40	BT40
	Spindle Speed Range	r/min	12000	8000/12000
Feedrate	X/Y/Z Rapid Feed Speed	m/min	48/48/48	36/36/36
	Max Cutting Feed Speed	mm/min	1-12000	1-8000
Motor	Spindle Motor Power	kw	7.5	11
Accuracy	X/Y/Z Position Accuracy	mm	0.005	0.005
Machine Dimension	Machine Dimension	mm	2300x2250x2450	3250x30302800
	Machine Weight	kg	3400	6500

Detailed Photos

Company Profile

Our factory is located in Dongguan City,which is known as the "world factory" and also covering an area of more than 20000 square meters.And we have a group of highly efficient R&D, production and service team.
Our factory is located in Dongguan City,which is known as the "world factory" and also covering an area of more than 20000 square meters.And we have a group of highly efficient R&D, production and service team.
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
