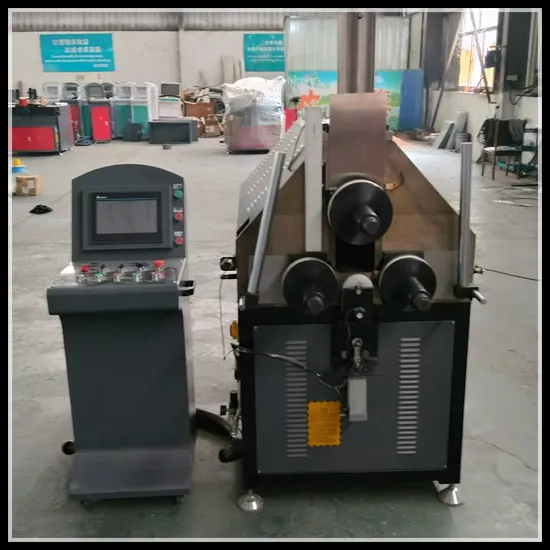

Hot Sellingapex Vertical Three-Axis Aluminum Profile Bending Machine of China
| US$5,900.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LLWYJ-60/65
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Power Supply
3phase 380V 50Hz or Customized
Input Power
5.15 Kw
Working Pressure
0.2MPa
Min Diameter of Bending
60mm
Max Width of Profile
150mm
Max Diameter of Rolls
180mm
Lower Shaft Center-Dimensions
350mm
Hydraulic Cylinder Pressure
20t
Rolls-Holding Shaft Diameter
60/65mm
Rotation Speed of Shaft
1-8r/Min
Positioning Precision
±0.01mm
Top Roll Runout
150mm
Torque
2500n.M
Overall Dimension
1000mm*800mm*1600mm
Machine Weight
800kg
Transport Package
Wooden Cases
Specification
CNC Aluminum Roll Bending Machine
Trademark
APEX
Origin
China
HS Code
8462911000
Production Capacity
100000 Set/Year
Product Description
Technical Parameters| Model | LWYJ-80-40T | LWYJ-80-30T | LWYJ-60 | LSWYJ-60/65 |
| Power supply | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Input power | 13KW | 12KW | 7.5KW | 10KW |
| Working pressure | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa |
| Min diameter of bending | 200mm | 180mm | 60mm | 60mm |
| Max width of profile | 180×320mm | 150×320mm | 150×180mm | 150×180mm |
| Max diameter of rolls | 280mm | 230mm | 230mm | 200mm |
| Lower shaft center-dimensions | 500-920mm | 485mm | 380mm | 350-750mm |
| Hydraulic cylinder pressure | 40T | 30T | 20T | 20/25T |
| Rolls-holding shaft diameter | 80mm | 80mm | 60mm | 60/65mm |
| Rotation speed of shaft | 1-8r/min | 1-8r/min | 1-8r/min | 1-8r/min |
| Positioning precision | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |
| Top roll runout | 300mm | 200mm | 260mm | 200/280mm |
| Torque | 4500N.m | 6000N.m | 3500N.m | 2500N.m |
| Overall dimension | 1840*1360*1350mm | 1950*1380*1620mm | 1570*1000*1275mm | 1300*1100*1500mm |
| Machine weight | 2500kg | 2200kg | 1600kg | 1000kg |
| Model | LWYJ-60/65 | LLWYJ-60/65 | LWYJ-130-65T | LWYJ-30 |
| Power supply | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Input power | 5.2KW | 5.15KW | 22KW | 1.85KW |
| Working pressure | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa |
| Min diameter of bending | 60mm | 60mm | 200mm | 30mm |
| Max width of profile | 150×180mm | 150mm | 200×400mm | 90mm |
| Max diameter of rolls | 200mm | 180mm | 300mm | 90mm |
| Lower shaft center-dimensions | 350-750mm | 350mm | 630-1300mm | 85mm |
| Hydraulic cylinder pressure | 20/25T | 20T | 65T | Mechanical transmission |
| Rolls-holding shaft diameter | 60/65mm | 60/65mm | 130mm | 30mm |
| Rotation speed of shaft | 1-8r/min | 1-8r/min | 1-8r/min | 1-8r/min |
| Positioning precision | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |
| Top roll runout | 200/280mm | 150mm | 390mm | 90mm |
| Torque | 2500N.m | 2500N.m | 9000N.m | 1750N.m |
| Overall dimension | 1300*1100*1100mm | 1000*800*1600mm | 1840*1780*1660mm | 1010*560*1035mm |
| Machine weight | 1000kg | 800kg | 3000kg | 400kg |
Our Advantages
Product details and features
Production Process
Packaging & Shipping
Company Profile
After Sales Service
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
FAQ
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.
