Tyre Bladder Turn-up Building Machine, Tire Building Machine

Product Description

Our Advantages:
1. More than 30 years experience in designing & manufacturing of rubber machines.
2. Jerry-build & inferior quality are never allowed.
3. Powerful technical team for customized service & professional oversea technical guide.
4. Strong processing capability for the most efficient machine delivery.

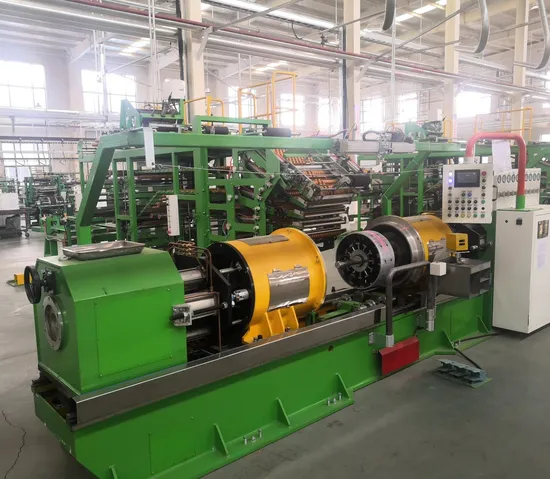

BTU-1621 Motorcycle Tire Bladder Turn-up Building Machine
Machine Usage:
This building machine is commonly used for tire building equipment in domestic & overseas currently, mainly used for producing motorcycle tire and motorcycle tubeless green tire building with the integration of PLY applying, bead applying & cord turn-up, high degree of automation, good quality green tire building, easy and simple operation. It is the advanced tire building in domestic & oversea market.
It consists of building drum,down compression roller, bead suction device, cord fabric, tread infrared centering device, compacting mechanism, material servicer etc.
Machine Features:
1. Durable frame structure with sufficient raw material applied.
2. Reliable machine quality with superior accessories chosen.
3. Latest machine design.
4. Less maintenance needed.
5. Easy installation.
6. Environment protection.
7. High safety configuration.
8. PLC control system.
9. High efficient and superior vulcanizing performance.
10. Low power consumption & labor saving.
Technical Parameters:

Model	BTU-0815	BTU-1621
Building Mode	Flat Drum Expansion	Flat Drum Expansion
Applicable Tire Size(Inches)	8"-15"	16"-21"
Material Servicer Layers(Layer)	4	4
Ply Width(mm)	≤500	≤500
Ply Roll Diameter(mm)	≤450	≤450
Liner Cloth Diameter(mm)	≤250	≤250
Building Machine Speed(r/min)	35/120	35/120
Motor Power(KW)	Host:2.2KW, Material Servicer: 0.75KW*4	Host:2.2KW, Material Servicer: 0.75KW*4
Overall Dimension(L*W*H)(mm)	3800X2260X1930	3800X2260X1930
Weight(KG)	3300	3300

Our Service:
1. Our engineer team can design customized machines for you and send the drawings for confirm.
2. The wires' connection from control box to operation box is finished before delivery. The user only needs to connect the outside wire to the controlling box.
3. Each machine is tested running with load at our factory before delivery to guarantee each parts working well.
4. Foundation drawings, detailed machine assembly drawings & parts drawing, user guide and maintenance manual will be supplied before the delivery.
5. Custom clear documents required in destination port, such as B/L, commercial invoice, packing list, insurance policy, C/O will be supplied once upon the delivery.
6. Oversea technical support can be offered as per request.
Our Package & Delivery :
FAQ:
1. Delivery time of the rubber machines?
Normally it needs about 25 days to 3 months according to the ordered machines' size and quantity.
2. What does your factory do regarding quality control?
We have the most professional engineer team to design the correct machines at the beginning, equip with the most advanced processing device to process the machine parts during the production period and finally arrange the most experienced assembly workers to assemble and check the final machines to 100% guarantee the superior quality and stable performance of each machine.
3. How long is your machines' warranty period?
The warranty period for our machines is one year from the day of normal working at the user plant.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support at the user plant with the charge of the required cost.
Small machines normally takes within 1~3 days.
Large machines normally takes about 30 days.
5. How can we go to your side for a factory visit?
We are located in Qingdao City, Shandong province, China. The nearest airport is Qingdao liuting airport.
Please advise us your time schedule in advance for us to pick up you at the airport.
