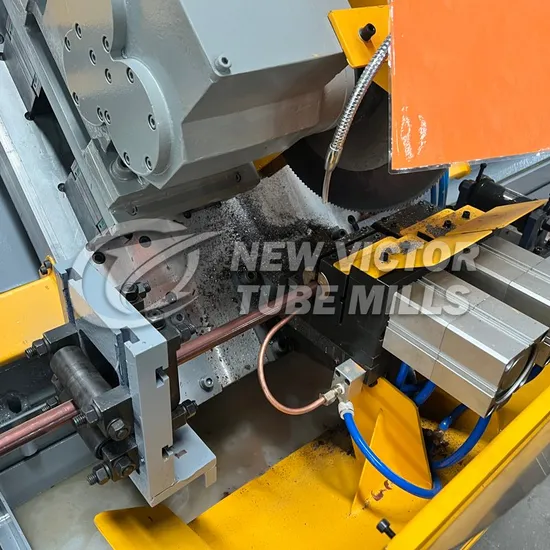

No Burr Steel Pipe Cutting Cold Flying Saw

Product Description

Cold flying saw is the main equipment for the welded steel tube production line with decoiler, strip feeding, roller forming and sizing, high frequency solid welding, cutting and stock of welded steel pipe production line. It is the production equipment of the last process of the welded pipe production line, which has a greater impact on the quality and production efficiency of the product.

Cold flying saw VS hot flying saw: cold flying saw: At a normal temperature, the metal is rapidly cut by a circular saw blade that is rotated at a high speed, and the cut end face is flat and smooth as a mirror.
Hot flying saw: The high-speed cutting is accompanied by high temperature and spark, and the cut end face is purple and has many burrs.

Sawing Type: cold flying saw: The high-speed steel saw blade rotates slowly and mills the welded pipe, so it can be burr-free and noise-free. The sawing process produces very little heat, and the saw blade has little pressure on the steel pipe and does not cause deformation of the pipe wall.
hot Flying saw: The hot flying saw is a high-speed rotation of the tungsten steel saw blade, and the contact welding pipe generates heat to break it, which is actually blown. High burning marks are visible on the surface. A large amount of heat is generated, and the saw blade exerts a great pressure on the steel pipe, causing quality defects in the pipe wall deformation.

Tolerance: cold flying saw:±1.5mm
hot Flying saw:±2.5mm

Product Advantage
√ Use HSS or TCT saw blade to cut.
√ It runs stably with high precision as ±1.5mm for length.
√ Cutting noise is lower and cutting method is safer than friction saw ,not hurting people even te saw blade is broken during the production.
√ Cutting end is smooth without burr,which can save the process of end-facing,especially for the square and rectangular pipes which are not suitable for end-facing.

Technical Parameters

Max. Dia.(mm)	Model	Wall Thickness (mm)	Clamping Type		Drag Power (KW)	Feed Power (KW)	Cutting Power (KW)		Saw Blade Dia. (mm)	Max. Speed(mm/min)	Lathe Length(mm)
			Pneumatic (Mpa)	Hydraulic (Mpa)			AC	SV
Max.Φ25	VLQ-25 CTCS-20	1.5	0.6		SV7.5	SV1.3	AC5.5	SV4.4	HSSΦ325	120	4200/4810
Max.Φ40	VLQ-40 CTCS-32	2.3			SV11	SV1.8	AC7.5	SV5.5	HSSΦ350	120
Max.Φ63.5	VLQ-63q	2.0			SV11	SV1.8	AC7.5	SV7.5	HSSΦ400	120
	VLQ-63 CTCS-50	3.0			SV11	SV1.8	AC11	SV7.5	HSSΦ400	120
Max.Φ76.2	VLQ-76 CTCS-60	3.2			SV11	SV2.9	AC15	SV11	HSSΦ450	80	4500/5150
Max.Φ90	VLQ-90q CTCS-76	4.0		10	SV15	SV2.9	AC15	SV15	HSSΦ450/Φ550	70	4830/5385
Max.Φ90	VLQ-90 CTCS-89	4.5			SV15	SV2.9	AC18.5	SV15	HSS/TCT Φ500~Φ560	70	4830/5385
Max.Φ101.6	VLQ-100	4.5			SV15	SV2.9		SV15
Max.Φ114.3	VLQ-114	4.0			SV15			SV15
	VLQ-114z CTCS-114	5.0			SV15	SV4.4	AC22	SV18.5	HSS/TCT Φ500/Φ560	50	5580/6210
Max.Φ140	VLQ-140 CTCS-127	6.0			SV22	SV5.5	AC30	SV22	HSS/TCT Φ500/Φ560	50
Max.Φ168.3	VLQ-168 CTCS-165	8.0			SV22	SV5.5		SV22	HSS/TCT Φ600/Φ650	50	/6290
