Online Tuning Fork Density Meter Methanol Hydrogen Peroxide Concentration Meter

Product Description

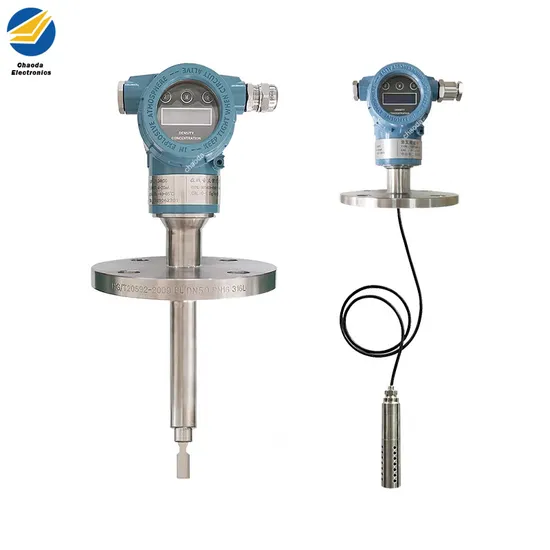

Product Description Tuning fork density meter uses acoustic frequency signal source to excite the metal tuning fork,and makes the tuning fork vibrate freely at the center frequency.This frequency has a corresponding relationship with the density of liquid, therefore, the density of liquid can be measured by analyzing the frequency. And the temperature compensation can eliminate the temperature drift. While based on the corresponding relationship between density and concentration,the concensation of liquid under the 20ºC can be calculated .Direct insersion fork density/concentration meter that offers installation flexibility with continuous, real-time density and concentration measurement in pipelines, bypass loops and tanks. Various Fork Density Meters with different designs are built to tackle the most demanding process and control applications. We also offer customised to meet customer's different requirements.
Product Parameters

Display	LCD display,density/concentration display(SDT600-4);density concentration dual display(SDT600-04H)
Measurement range	0~1.5g/cm3 ,0~3g/cm3 ,0~50%,0~100%
Accuracy	0.001g/cm3 (standard condition),0.002g/cm3,1%,0.5%
Resolution	0.0005g/cm3
Allowable temperature	-20~120ºC
Ambient temperature	-25~85ºC
Operating voltage	DC24V
Electrical Connection	M20×1.5,1/2NPT
Output	4~20mA(four-wire),RS485 or Hart protocol
Connection type	split-type cable,flange,clmp and thread
Materials in contact with medium	316L,316L+PTFE,Hastelloy,Titanium,ceramic etc.
explosion-proof	flameproof ExdIICT6

Detailed Photos
FAQ FAQ:Q1: What's your business range?A: We manufacture PH/ORP/EC/DO/Chlorine/Turbinity meter and provide dosing pump, diaphragm pump,dosing system, pressure instrument, flow meter, level meter, dosing system and so on.Q2: How about the quality of the managements?A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.Q3: Can you offer OEM or design services?A: Yes, we have our own design department and production tools. We can make OEM products according to your requirements.Q4: What are your terms of payment and delivery time?A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.Q5: How about warranty?A: 12 months warranty.
