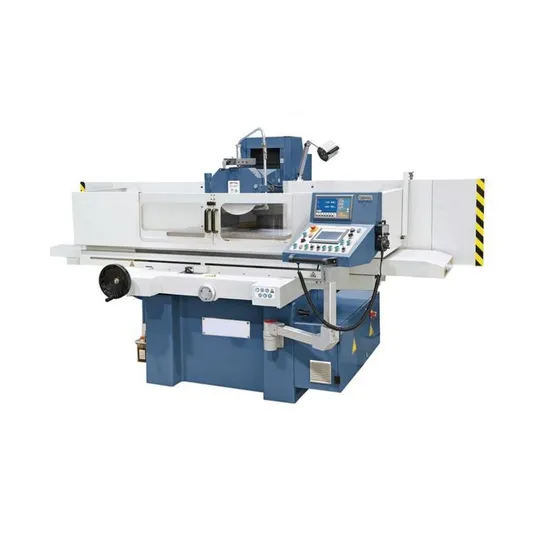

High Precision Hot Sale Nc Series Saddle Moving Grinder

Product Description

Product Description

Closed guard with opening door, make the machine not only looks well but also improve level of protecton.
The machine is standard equipped with SIEMENS T LCD-TFT colourful touchable scren. Farun engineer's genius philosophy ground program makes the operation very simple and convenient for the operators.
NC series saddle moving grinder are standard equipped with YZ axis AC servo motor, and YZ axis MPG. Table X axis movement drove by hydraulic.
You can choose auto dressing&compensation function as an opitional accessory, which would save much more labor force, so as to assure machining accuracy and product efficiency.
Feature instroduction of saddle moving surface grinder
FSG Series saddle moving grinder, the table size covers 200x500,250x500,300x630,300x1000,400x800,400x1000.
Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes corss movement driven by AC motor, work table make reversing movement driven by hydrau, and spindle make elevating movement and is driven by manual(M series), AC motor(R series), or AC servo motor(A series).
Well-designed control panel with two-way rotate structure, make the operator getting suitable working position very easy, improve work efficiency
Double walled column construction, provide high rigid support to the grinding spindle. Closed steel guard is equipped for protecting spindle motor and guide way, which make the column safe and beautiful.
Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.
Independent hydraulic station assembles with air cooling, running stably with small temperature rise, provide enough power for precision grinding.
the A series grinder is standard equipped with auto down feed Servo motor, and controlled by PLC and HMI with built-in program. It is so easy to realize auto grinding.
The work table is driven by imported hydraulic valve unit, realize smoothly motion without shocking
Guide way is coated with Turcite and precision hand scraped, move smoothly and keep the accuracy
Product Parameters
Specifications

	ITEM/ MODEL		FSG3063NC	FSG30100NC	FSG4080NC	FSG40100NC
	Table size	mm	305*635	305*1020	406*813	406*1020
	Magnetic chuck size	mm	300*600	300*1000	400*800	400*1000
	Max.distance from spindle center to table	mm	580	580	580	580
	Max. loading capacity(include chuck)	kg	300	400	500	600
	X axis feed
	Feed speed	m/min	5~25	5-25	5~25	5-25
	Micro feed rate	mm
	Z axis feed
	Feed speed	m/min	0~1	0~1	0~1	0~1
	Intermittent feed rate	mm/t	0.1~8	0.1~8	0.1~8	0.1~8
	Micro feed rate	mm	0.005	0.005	0.005	0.005
	Y axis feed
	Feed speed	m/min	0~1	0~1	0~1	0~1
	Micro feed rate	mm	0.005	0.005	0.005	0.005
	Spindle rotating speed	r/min		1450 (50HZ)/1750 (60HZ)
	Grind wheel size	mm	350*40*127	350*40*127	350*40*127	350*40*127
	Spindle motor power	kw	4	4	4	4
	Floor space (L*W*H)	mm	2900*2200*1900 4400*2200*1900 3600*2400*1900 4400*2400*1900
	Gross weight	kg	2800	3200	3400	3700
	Package size (L*W*H)	mm	2500*2220*2250	3200*2220*2250	3000*2270*2250	3200*2270*2250
