Haide Apm Cleaner Machine China Suppliers 5xfz-25sc Quinoa Wind Separation Specific Gravity Classification Cleaning Machine

Product Description

HAIDE APM Cleaner Machine China Suppliers 5XFZ-25SC Quinoa Wind Separation Specific Gravity Classification Cleaning Machine Product Description
Introduction and Function

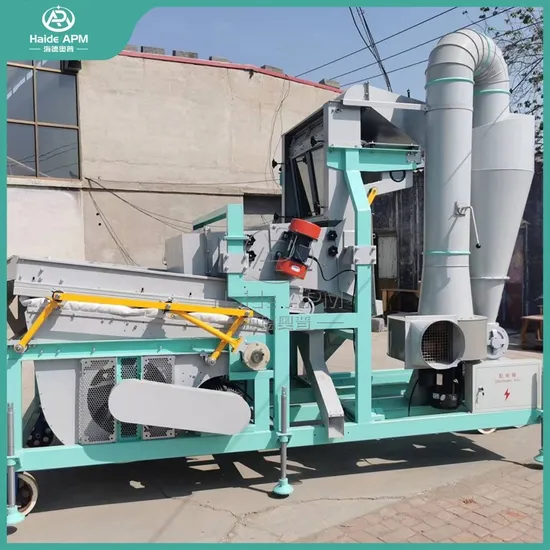

This Air screen cleaner with a gravity table removes dust, leaf, and light impurities from the air screen. Remove above 90% bad seed, like blighted seed, budding seed, damaged seed (by insect), rotten seed, deteriorated seed, moldy seed, non-viable seed, and seed with black powder sick by the gravity table. Remove the big impurity from the back half screen.
Detailed Photos
Product Parameters

Product Name	Air Screen Cleaner With Gravity Table
Keywords	Air Screen Cleaner
Brand	Haide APM
Model	5XFZ-25SC
Key Selling Points	High-Accuracy
Productivity	5-10T/H
Input	3 Phase Electricity
Power	12.3kw
Weight	2300kg
Feature	Compounded, Multifunctional, with Gravity table
Function	Seed and Grain Cleaning, Remove Impurities, Remove bad seed
Delivery Time	15 Days
Certificate	CE,SONCAP,ECTN etc
OEM/ODM	Accept
MOQ	1set

Model	table Size(mm)	Power (kW)	Capacity (t/h)	Weight (kg)	Overall size LxWxH(mm)
5XFZ-25SC	1700 x 1600	12.3	Wheat 10t	2300	4200 x 2300 x 3800
			Sesame 5t

Working principle
This Air screen cleaner with a gravity table integrates the functions of lifting, vertical air selection, grading selection, and specific gravity selection. First, the material is transported to the bulk grain tank by the lifting equipment. Under the action of the bulk grain tank, the material is dispersed into a uniform waterfall surface and enters the vertical air screen.
The light impurities are discharged from the light impurity outlet of the dust collector through the air selection, and then the material flows into the specific gravity table, are separated due to the difference in specific gravity. The impurities with smaller specific gravity are distributed on the surface flow to the lower end and discharged from the light impurity outlet, which can be bagged randomly or enter the next processing flow.
