Josen Fgm-84ahd Type, Heavy Cutting, Fully Automatic Surface Grinder Low Prices

Product Description

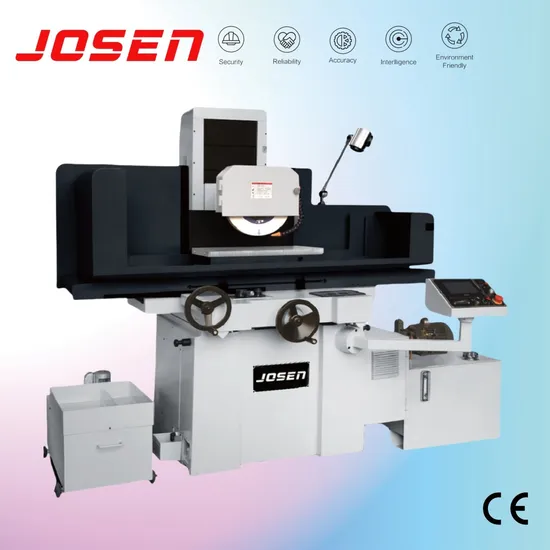

JOSEN FGM-84AHD Type,heavy cutting, Fully Automatic Surface Grinder
Product Description
Basic Info
Standard Configuration

Serial number	Name
1	Grinding wheels (white steel jade, φ355x20-40xφ127)
2	Grinding wheel flange
3	Grinding wheel repair pen and base
4	Grinding wheel balancing frame
5	Grinding wheel balancing bar
6	Work light
7	Leveling mats
8	Flushing system
9	Tools and Toolbox
10	Ordinary electromagnetic suction cup (800*400)

Product Specification

Technical parameters (TECHNICAL PARAMETERS)			Unit(unit)	FGM-84AHD
Processing capacity	Table size)		mm	800X400
	Maximum grinding length		mm	920
	Maximum grinding width		mm	450
	Maximum distance spindle to table		mm	580
	Maximum table bear the weight(including disk)		kgs	700
Table	Table T-slot		mm*N	14x3
	Table speed		m/min	5-25
	Front and rear handwheel feed	One cell (A grid)	mm	0.02
		One lap (Lap)	mm	5
	Front and rear automatic feed		mm	0.1-10
	Front and rear rapid movement (Front and rear fast-moving)	50Hz	mm	990
		60Hz	mm	1190
Grinding wheel	Grinding wheel size		mm	φ355x20-40xφ127
	Spindle speed	50Hz	R.pm	1450
		60Hz	R.pm	3420
Upper and lower structure (The vertical structure)	The maxmum amount of movement		mm
	On the handwheel infeed	One cell (A grid) A rotary (A rotary)	mm	0.001
			mm	0.5
	Automatic feed rate		mm	0.005-0.025
	Fast moving up and down volume		mm/min	230
Motor	Spindle motor		HP	7.5
	Vertical drive motor		HP	80W
	Hydraulic motor		HP	3
	Motor flush		Hp	1/4
	Backward driviing motor		HP	80W
Size(Packing size)	Machine height		mm	1880
	Covers an area of		mm	3600x2750
	Net weight		Kg	2800
	Gross weight		Kg	3000

Major Component Suppliers

Serial number	Component name	Brand
1	Spindle motor	Tomita / Datong
2	Ball screw	AHK
3	Servo motor and servo driver	Hogawa
4	Main electrical components	Tend / Taian
5	Centralized lubrication system	Shengxiang
6	Magnetic controller	Chen Ming
7	PLC controller	Hogawa
8	Electromagnetic suction cups	Wick
9	Spindle assembly	Fomburg

Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Detailed Photos

Company Profile
Packaging & Shipping

FAQ

1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
A:We provide one year warranty, if any parts broken, we will send you a new one for free.
7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.
