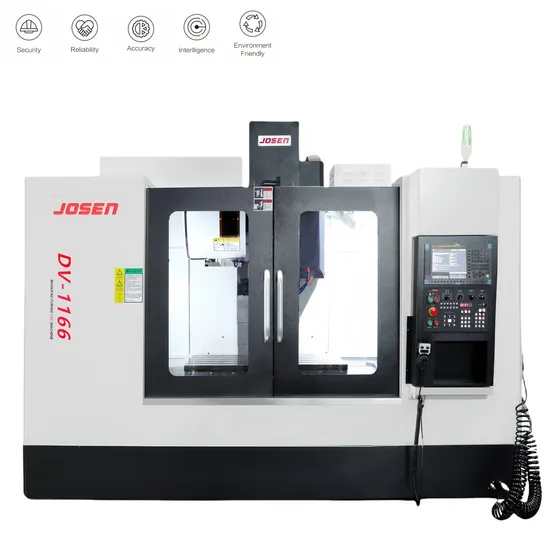

Vmc 1160 Milling Machine High Precision Vertical New CNC Machining Center
| US$20,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DV-1166
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.05~0.06(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Spindle Feed
10000/8000rpm
Spindle Taper Hole
Direct Driven
Cutting Feed Rate
10000mm/Min
Working Table Size
1200*600mm
Transport Package
Iron/Wooden Bracket, Wood Case
Trademark
Josen
Origin
China
HS Code
8457101000
Packaging & Delivery
Package Size
2880.00cm * 3250.00cm * 3215.00cm
Package Gross Weight
7500.000kg
Product Description
Features:| 1.This model is suitable for communication electronics, automobile and locomotive parts production, and automated parts processing. |
| 2.Combined with FEM analysis, the main components of the base, column and saddle all adopt unique high rigidity structure, which makes the internal force structure of the whole machine more optimized and ensures the rigidity and thermal variation stability of the whole machine. |
| 3.Three axes linear precision rolling guide design, fast acceleration and deceleration response, effectively improve the machining efficiency and machining accuracy of the machine, even under heavy load is also excellent. |
| 4.The front end of the spindle is equipped with a circular water jet to allow effective cooling of the cutting tool, while the internal air curtain with negative pressure extends the service life and ensures reliable use of the spindle for long time and high-speed operation. |
| 5.The stable base and column with lightweight motion axis components effectively ensure the stability of the machine during high acceleration and deceleration movements. |
Basic Specifications:
| ITEM | UNIT | DV-1166 |
| Travel | ||
| X-axis travel | mm | 1100 |
| Y-axis travel | mm | 620 |
| Z-axis travel | mm | 600 |
| Worktable size | ||
| Working table size (X*Y) | mm | 1200x600 |
| Max.loading capacity of working table | kg | 900 |
| Table T-slot size (width * number of slots * spacing) | number | 18x5x100 |
| Spindle | ||
| Spindle speed | rpm | 10000 |
| Spindle drive form | belt driven | |
| Spindle power | kW | BT40:11/15 |
| Spindle bore specification | BT40 | |
| Distance from spindle to table surface | mm | BT40:125-725 |
| Spindle feed | ||
| Rapid feed rate(X,Y,Z) | m/min | 36/36/36 |
| Cutting feed rate | mm/min | 10000 |
| Tool magazine | ||
| Tool magazine capacity | cutter arm type 24 | |
| Tool diameter/adjacent tool space | mm | BT40:Φ80/Φ150 |
| Max. Tool length | mm | 300 |
| Max. Tool weight | kg | BT40:8 |
| Accuracy | ||
| Positioning accuracy | mm | ±0.005 |
| Reproduction accuracy | mm | ±0.003 |
| Others | ||
| Controller | 0i-MF/M80 | |
| Air pressure demand | kg/cm2 | 6 |
| Power demand | kVA | 30 |
| Machine weight | T | 6.5 |
