3 Side Seal Pouch Making Machine for Three Side Seal Resealable Smell Proof Mylar Ziplock
| US$30,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KTSS -A
Voltage
380V
Seals Mode
3 Side Sealing
Speed
High
Continuous-Rolled
Yes
Sealing & Cutting
Both
Layer
Double
Machine Type
Bag Forming Machine
Computerized
Computerized
Type
Plastic Bag Making Machine
Suitable Material
Laminated Material Roll
Making 3 Side Sealing Pouch
Yes
Auto Counting
Yes
PLC Touch Screen System
Yes
Japan Panasonic Servo System
Yes
Servo Motor Control Feeding
Yes
Auto Tension Control System
Yes
Product Name
Three Side Sealed Pouch Machine
Keyword
Food Packaging Making Machine
Keyword 1
Heat Seal Plastic Flat Bag Machine
Keyword 2
Resealable Seal Aluminum Foil Machine
Keyword 3
Flat Pouch Bag Machine
Keyword 4
3 Side Seal Pouch Making Machine
Keyword 5
Smell Proof Plastic Bag Small Making Machine
Keyword 6
Bag Making Machinery
Transport Package
Wood
Specification
9000x2000x1850mm
Trademark
KETE
Origin
China
Production Capacity
20 Sets/ Month
Product Description

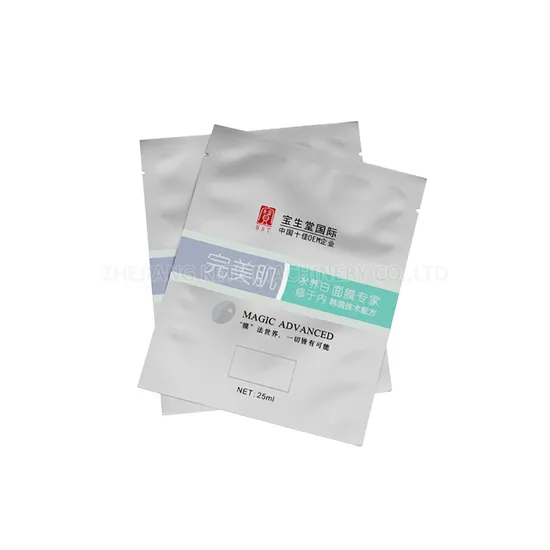

This 3 side seal pouch making machine is suitable to use different kinds of laminated (Compounded) film to make three side sealing pouch. Ω. Use Laminated Material Ω. Use PLC Touch Screen System Ω. Unwind use Auto-tension Control System Ω. Material Feeding use Servo Motor System
| Model | KTSS -A600 |
| Bag Type | 3 Side Sealing Pouch |
| Max Material Width | 1250mm |
| Max Roller Diameter | ф600mm |
| Max Bag Making Width | 600mm |
| Max Bag Making Length | 2400mm |
| Bag making speed | 150pcs/min |
| Material Feeding Speed | 40m/min |
| Air Pressure | 0.6 MPa |
| Cooling Water | 15L/min |
| Machine Power | 45kw |
| Machine Weight | 5000kg |
| Machine Size | 9000 × 2000 × 1850mm |
