China Best Sell Single Knot Fishing Net Machine Net Making Machine Manufacture Model Zrs44.4-120h for HDPE Twisted/Braided Nets

Product Description

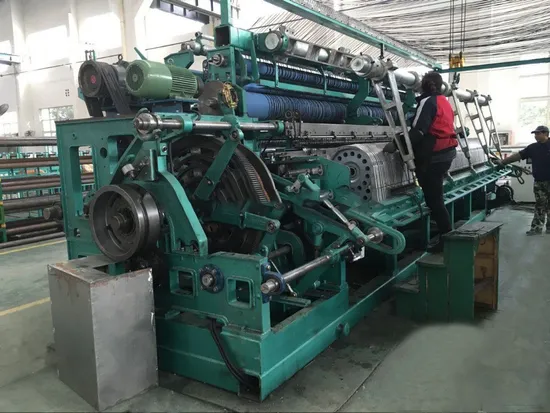

Fishing net machine
1 The most robust fishing net machine
2 Largest amount of weft twine
3 Suitable for making bottom trawl netting, trawl netting, safety netting and so on

Model	ZRS44.4-120H
Knot type	Single knot
Pitch	44.4mm
No of shuttle	120
Spool dia	425mm
Nylon multifilament	Twisted:210d/180-1200ply Braided:3.0-8.0mm
HDPE twine	Twisted:400d/90-300ply Braided:3.0-8.0mm
Mesh size	78-200mm

More models

Model		ZRS25.4-210H	ZRS28-180H	ZRS32-160H	ZRS35-155H	ZRS38-138H	ZRS41.2-130H	ZRS44.4-120H	ZRS50.8-105H
knot type		S	S	S	S	S	S	S	S
pitch (mm)		25.4	28	32	35	38	41.2	44.4	50.8
width(number of meshes)		210	180	160	155	138	130	120	105
Spool diameter (mm)		425	425	425	425	425	425	425	425
Twine applicable	Nylon braided cord (mm)	1.3-4.5	1.5-5.0	1.8-6.0	2.0-6.0	2.5-6.5	2.7-7.5	3.0-8.0	4.0-10.0
	Nylon monofilament(mm)(mm)	210d/30-180	210d/42-210	210d/51-360	210d/90-420	210d/150-780	210d/180-1000	210d/180-1200	210d/210-1600
	PE twine denier/ply	400d/18-84	400d/21-102	400d/36-180	400d/45-210	400d/75-240	400d/81-270	400d/90-300	400d/120-360
Mesh size (mm)		40-200	45-200	52-200	62-200	70-200	75-200	78-200	100-200
Rotative velocity (r/min)		11	11	10	9	11	10	10	9
Motor Power (kw)		5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5
Outline size	Length (mm)	9236	6050	9283	10015	9146	9266	9235	9236
	Width (mm)	5540	5540	5540	5540	5540	5540	5540	5540
	Heigth (mm)	2650	2650	2650	2650	2650	2650	2650	2650
Weight (KG)		25000	24500	24500	26850	23500	25300	25300	25600

After-sales service
1.Waratee period
one year
2.Warantee Covers
Main pars of the machine,wearing parts are not included
3.Parts delivery
Within one week by courier
4.Tecnician support
Tecnicians available for overseas service
5.Installation&commissioning
Seller can send tecnicians to do installation,tecnician costs will be on buyer's
Yangzhou Haili Precision Machinery Co., Ltd(Yangzhou Haixin Textile Machinery Co., Ltd).Now we are the
largest professional manufacturer of fishing net machine,lengthway &depthway fishing net stretching
machine,auxidiary equipments &spare parts in China.It has been engaged in this field for more We have
more than 90 series fishing net machines such as ZRD/S-Y, ZRD/S-N,ZRD/S-X,ZRD/S/U-F, ZRD/S/U-A,
ZRS-H and so on.Our products have been exported to Germany, Japan, Spain, Thailand, Vietnam, South
Korea, Africa and other countries . We warmly welcome customers and friends by local and abroard to visit
and guide, look forward to your cooperation .
