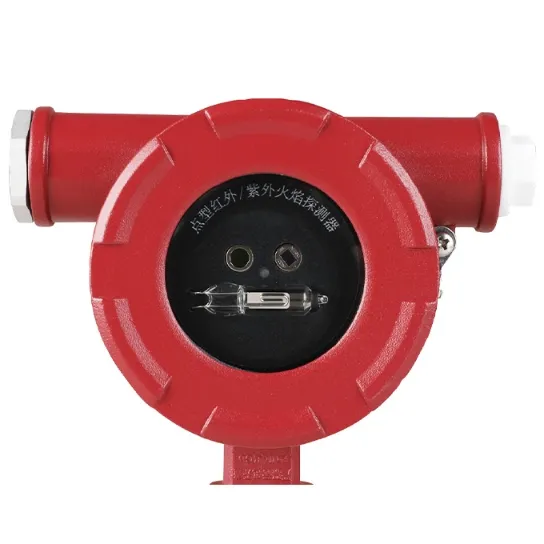

Advanced UV and Infrared Flame Detector for Industrial Burners

Product Description

Product DescriptionThe Furnace Safety Monitoring System (FSSS) is an important measure to prevent accidents in heating furnaces or boilers caused by the accumulation of flammable materials and misoperation and to ensure the safe operation of heating furnaces and boilers. The flame detection device is a key piece of FSSS equipment, and the successful operation of the FSSS largely depends on the correct and reliable operation of the flame detection device.
One infrared/single ultraviolet, dual detector multi-band flame detector, effectively detects hydrocarbon (commonly known as red light) and nonhydrocarbon (commonly known as white light) flames and alarms.They are widely applicable to special environments such as highway tunnels and pipe galleries, as well as places with potential explosion hazards such as petroleum, chemical, power, pyrotechnic, special chemical, and storage areas. The detector can detect fire flames and provide rapid alarms for fires.
Detailed Photos
Product ParametersSpectral Range(IR): 4.4um, 5.0-11.0um/180-290um Workingvoltage: DC24V (16-32VDC)
Output: Standard relay output, optional output: 4~20mA, RS485, bus circuitRated current: static≤60mA,alams≤70mA
Electrical interface: G3/4 (6 ") (internal thread)Enviromnental temperature: -20ºC~55ºCEnvironmental humidity: ≤95RH no dewFire Sensitivity: Level 1 (factory setting)Rotation angle: up, down: 180°, left, right: 180°
Detection angle: ≤ 90 ° (maximum sensor angle ≤ 110 °)output: Standard relay output, Optional output:4~20mA RS485, Bus circuitExplosion proofmark: Exd llC T6 Gb/IP67
Shell material weight: die-cast aluminum 6kg, customized: stainless steel/6KgDimension:162x161x152(mm)
Certifications
Company ProfileOur company was founded in 2007 with a registered capital of 46 million RMB and currently has a production plant of 12000 square meters. We specialize in R&D, design, and manufacturing of auxiliary equipments such as petrochemical heating furnaces, industrial furnaces, burners, regenerative air preheaters, and furnace accessories. It has an annual production capacity of 5000 sets of burners, 100 sets of rotary air preheaters, and 100 sets of heating furnaces and other aluminum melting furnaces, with an average annual sales revenue of 200 million RMB. We own 1 software copyright, 12 invention patents, and over 120 utility model patents. Our company extensively conducts industry academia research and has established partnerships with universities such as Beijing University of Science and Technology, China University of Petroleum, etc. Since its establishment, it's successively won the titles of "Specialized, Refined, Unique and New" Demonstration Enterprise, "National Specialized, Refined, Unique and New Small Giant Enterprise".
