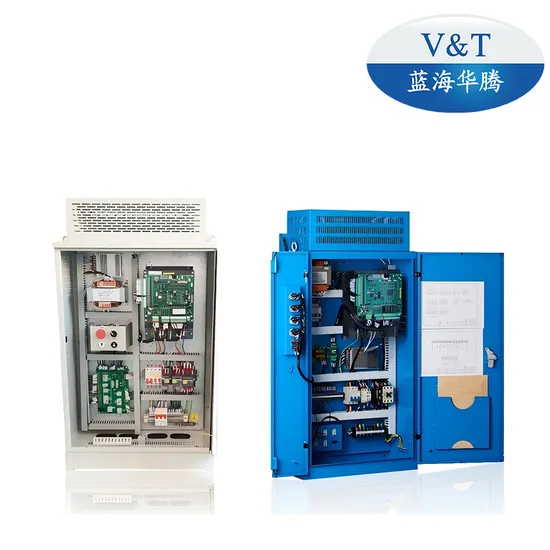

5.5~75kw Integrated Control Cabinet/Controlling Cabinet for Machine Room Elevator

Product Description

Features and advantages
An integrated control cabinet for a machine room elevator is a comprehensive system designed to manage and coordinate the operation of an elevator, particularly those that house their machinery within a dedicated machine room. This type of control cabinet is crucial for ensuring the efficient, safe, and reliable functioning of an elevator system. Here's an overview of its and functions:
Elevator Operation Management: Coordinates the movement of the elevator car between floors, opening and closing of doors, and stopping at requested floors.
Energy Efficiency: Modern integrated control cabinets often incorporate energy-saving features, such as regenerative drives that recover energy during braking and LED lighting.
Maintenance and Diagnostics: Provides diagnostics tools that can help maintenance personnel quickly identify issues and perform necessary repairs.
Safety Compliance: Ensures that the elevator meets all relevant safety standards and regulations.
Integration with Building Systems: Can be connected to fire alarm systems, access control systems, and HVAC systems for enhanced building management.
Specification parameters

Model	AIEC-CB1	AIEC-CE1	AIEC-CFl
Machine room	Machine room
Size(Width*Height*Depth,mm)	492*1120*220	558*1248*278	632*1398*366
Installation mode	Wall-mounted		Floor-mounted
Rated power	2.2~15kW	18.5~37kW	45~75kW
Input power supply	Three phase 380V(200V)50/60Hz,single phase 220V 50/60Hz
Applicable motor	Permanent magnet synchronous motors,asynchronousmotors
Applicable brake	DC110V<6A,DC220V/DC110V<4A,AC220V<4A Other can be customized
Applicable door machine	Frequency converter door machine,DC resistor door machine
Standard	Meet the new national standard and obtain Special Equipment Type Test Certificate
Socket type	AMP plug-in type,terminal block,interface board
