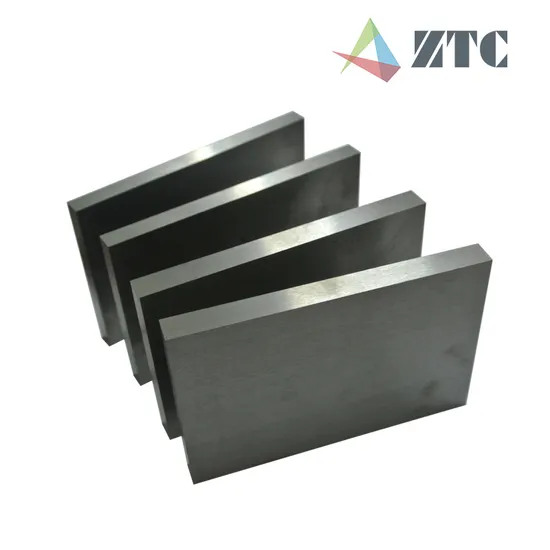

Yg15 Yg20 Manufacturing-Processing-Machinery Wear Plates Cemented Carbide Plates

Product Description

Our Advantages
1.Uniform Density
We use cold isostatic pressing (CIP) method to ensure more uniform density,and prevents pressing defects effectively for our tungsten carbide plate blanks.
2.High Densification
Overpressure sintering (HIP sintering) significantly reduces porosity, enhances the tungsten carbide plates'densification, and improves overall product performance.
3.Crack Prevention
The plates undergo cryogenic treatment to release sintering stress, effectively preventing cracks during cutting and forming, thus enhancing durability.
4.High-Quality Inspection
Utilizes nondestructive ultrasonic flaw detection to ensure no sand holes or pores, guaranteeing high product quality.
5.Variety of Material Options
We offer tungsten carbide plates with different material properties according to customer's requirements, the common grades including YG6, YG8, YG10X, YG15, YG20, with high hardness ranging from HRA89.5 to HRA92.And also with high bending strength maximum up to 4000 MPa.Which makes our carbide plates very suitable for applications like wear-resistant parts and stamping dies.
6.Customization Services
Provides customized tungsten carbide plates based on material, size, and shape to meet specific customer needs.
7.Various Processing States
Available in both blank and precision-ground forms to cater to different product requirements.
24/7 Online Service: Our customer service is available 24/7 to address your inquiries, ensuring prompt communication and support at all times.
Detailed Photos


Common Grades

Grades	Hardness(HRA)	Denstity(g/cm3)	T.R.S(N/mm2)	ISO
YG6	91	14.90	1900	K10
YG6X	91.5	14.90	1860	K10
YG8	89.5	14.70	2080	K20
YL10.2	91.5	14.4	3200	K30
YG10X	92	14.45	3000	K40
YG15	87	14.3	3300	K40
YG20	86.5	14.2	3800	K40

Common Sizes

Length(mm)	Width(mm)	Thickness(mm)
200	200	15-45
150	150	15-45
150	100	15-45
150	130	15-45
150	80	15-45
120	120	15-45
100	100	15-50
100	45	15-50
80	55	15-50
80	40	10-50
70	35	5-50
45	25	3-20
35	19	5-30
20	20	5-20
18	13	5-20

Company Profile
Zhuzhou Bullo Cemented Carbide Co.,Ltd is a modern enterprise integrating independent production and trade, and our expertise in the tungsten carbide components began in 2008.The company is located in Zhuzhou City, Hunan Province,and has passed the ISO9001:2015 quality certification system. It owns standardized modern factory, a professional technical and sales team, as well as advanced equipment for production and inspection.
We have many specific tungsten carbide products which cover a wide range of industries,they are mainly divided into two major parts: cemented carbide wear-resistant parts and cemented carbide cutting tools. Part of our tungsten carbide products are listed in detail as follows:
· Tungsten carbide rods, strips, and plates
· Tungsten carbide mechanical seal rings
· Tungsten carbide pin pegs and blocks
· Tungsten carbide grinding jar, balls, jaw plates, and grinding discs
· Crusher and pulverizer blades
· Tungsten carbide nozzles for oil and gas
· Tungsten carbide rotors and stators
· Control valve assemblies and flow trim components
· Valve plugs, valve seats, and valve cages
· Wear-resistant bushings and liners
· Bearings, bushings, guide rails, and sleeves
· Tungsten carbide welding blades
· Tungsten carbide hob rotary cutters and fixed blades
· Tungsten carbide circular saw blades
· Tungsten carbide rotary files
· Tungsten carbide inserts and end mills
· Tungsten carbide rollers
· Tungsten carbide auxiliary powder materials
...
Our products have been widely exported to Russian Federation, Germany, America, South America, etc. And our carbide are widely used for machining cast iron, steel, stainless steel, aluminum, copper, rubber and so on.
Stable quality and satisfactory service are the eternal commitments of Zhuzhou Bullo Cemented Carbide Co., Ltd. We adheres to the philosophy of "high quality, integrity, and innovation" and is dedicated to providing high-quality products and services to all our customers. We warmly welcome interested customers to come and customize their orders and cooperate with us!
