Carbon Steel One Year Pet Flakes Hot Washing Machine Line
Basic Info.
Model NO.
HR-1000
Material Processed
Plastic Bottle
Plastic Type
PET
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
CE
Machine Material
Carbon Steel
Capacity
1000kg/H
Crushing Type
Wet Crushing
Processing Type
Label Removing-Crushing-Washing-Dewatering
Washing Type
Hot Washing
Material
Pet Bottle
Final Product
Clean Pet Flakes
Flakes Size
12mm, 14mm, 16mm, 18mm, 20mm
Transport Package
Film
Specification
20000kg
Trademark
Haorui
Origin
China
HS Code
8479820090
Production Capacity
100set
Product Description

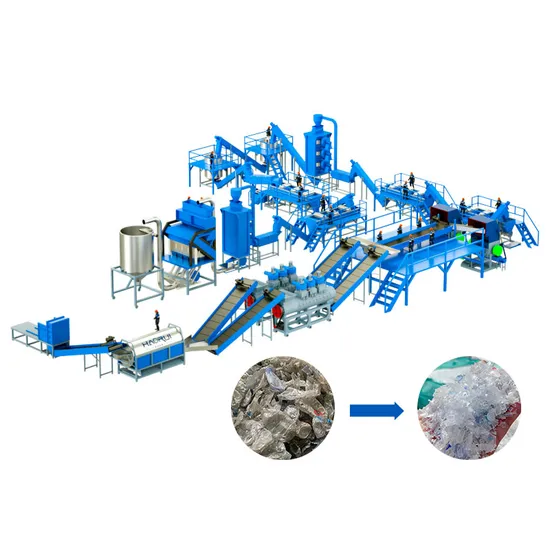

Product Discription:The PET bottles recycling washing line from PET bottles to washed cleaned PET flakes.
| Machine name | Model | Function | Capacity |
| Coneyor Belt | 800 Type | Transport the bottles to label remover | 1200kg/h |
| Label Remover | 600 Type | Removing the label from bottles | 1000kg/h |
| Sorting Platform | 800 Type | Removing the bottle that with label | |
| Coneyor Belt | 800 Type | Transport the bottles to crushing machine | 1200kg/h |
| Crushing Machine | 1000 Type | Crushing the PET bottles into flakes | 1000kg/h |
| Screw Loader | Transport the PET flakes for floating tank | ||
| Floating Tank | Washing PET flakes and separate caps | ||
| Screw | Transport PET flakes to hot washing tank | ||
| Hot Washing Tank | Hot washing PET flakes | 1000kg/h | |
| Screw | Transport PET to floating tank | ||
| Floating Tank | Washing PET flakes | ||
| Screw | Transport PET falkes to dewatering machine | ||
| Dewatering Machine | 600 Type | Removing water from PET flakes after washing |
Company Profile
FAQ
FAQ:
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades-Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
Q: How about the rate for removing the labels by Label remover?
A: Compressed bottle: more than 96%
Un-compressed bottle: more than 98%
Q:What's the temperature of steam washer ?
A: Usually 80-90ºC ( If the temperature is over 100ºC, the Flake will be roll.so the best temperature
is 80-90ºC)
Q: What's the moisture after Horizontal dewatering machine?
A: About 1.8%. Adopt Swedeen SKF bearing, with bearing layer on the surface of screw blades
for longer working life.
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades-Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
