Highsun High Quality Servo Plastic Injection Molding Machine Fruit Frame Injection Machine 488 Tons

Product Description

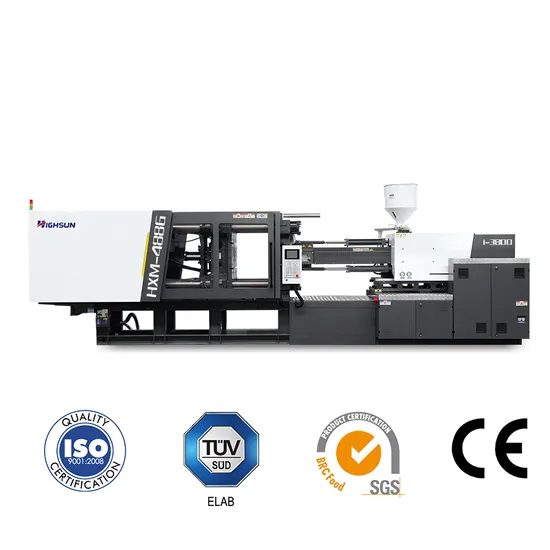

1.HXM488-G Special injection molding machine for fruit frames
2. Specifications

MODEL:HX(*)488-G
TECHNICAL PARAMETER TABLE
INJECTION UNIT	SCREW DIAMETER	Mm	95
	SCREW L/D RATIO	L/D	19
	INJECTION CAPACITY (THEORETICAL)	cm3	2622
	INJECTION WEIGHT(PET)	g	2386
		oz	84.1
	INJECTION PRESSURE	MPa	146
	INJECTION RATE	g/s	626
	PLASTICIZING CAPACITY	g/s	95
	SCREW SPEED	rpm	150
CLAMPING UNIT	CLAMPING FORCE	KN	4880
	NOVING MOULD-PLATE STROKE	mm	830
	MAX. MOULD HEIGHT	mm	820
	MIN. MOULD HEIGHT	mm	300
	SPACE BWTWEEN TIE-BARS (W×H)	mm	820*800
	EJECTOR FORCE	KN	125
	EJECTOR STROKE	mm	210
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR POWER	KW	40+40
	HEATING CAPACITY	KW	27
	MACHINE DIMENSION (L×W×H)	m	8.05*2.07*2.41
	MACHINE WEIGHT	t	16.5
	OIL TANK CAPACITY	L	960

3. Advantage
a. SUPER ENERGY SAVING
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor willreduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power.
b. HIGH PRECISION AND HIGH STABILITY
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
c. HIGH RESPONSE AND HIGH EFFICIENCY
The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.
4. Actual shooting of trial model

5. Cabinet case

Transportation by sea or rail to Mexico, Bangladesh, Turkey, Ethiopia, Algeria, Nigeria, Saudi Arabia, Iran, Russia, Sudan, Thailand, Peru and other countries.
6. Workshop
We have six workshops, which are machine development workshop, machine storage workshop, spare parts storage workshop.
1 workshop: SP(Middle-speed injection molding machine) and HXYD(Fully-electric and high-speed injection molding machine) production R & D workshop, also stored in the injection molding machine production required parts.
2 workshop: HXM(Servo energy injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 128tons, 158tons, 418tons, 478tons, HXH 260tons, 280tons, 430tons and so on.
3 workshop: HXM(Servo energy injection molding machine), PVC injection molding machine, PET injection molding machine, HXS(Clear two-color injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 98tons, 268tons, from 538tons to 2500tons, HXH 160tons, 200tons, 350tons, 380tons, HXS160tons, 200tons and so on.
4 & 5 workshop: HIGHSUN's independent R & D workshop, automatic processing center. According to customer feedback to the performance of the machine constantly improve, to provide customers with better injection molding machines.
6 workshop: Stored in screw barrel, hopper, hydraulic motor, thermocouple, valve, sheet metal injection molding machine accessories.
7. HIGHSUN
HIGHSUN is one of the most professional lnjection Molding Machine manufacturer with morethan 50 years' history (founded 1973)in Ningbo, China.
As one of the leading innovator and developer of lniection Molding Machine, HIGHSUN has the world's first class production plant occupied more than 100 million square ft; equipped with the most advanced CNC machining system and processing equipments & inspection devices (CNC utilizationratio: above 83%), achieve with mass production with higher-quality and quicker-delivery.
Production capacity may reach 7000sets per year. Supply variety of series with clamping force from 98ton to 2500ton coverage with HXM(servo drive), HXH (high-speed performance), SP(middle-speed), HXYD(Hybrid & Full electric), HXZ(two-platen), HXS(double color) and special solutioras PET series, PVC series etc.
Realized more than 110million US$ sales in 2018, constantly keep 15% increase in sales in the past 3years; and from 2014 to 2018, a fifth consecutive HX awarded TOP-3 leader by CPIMMA for comprehensive strength of IMM manufacture and develop.
Based on strict management,superior quality, stressing reputation and paying attention to service. HIGHSUN hot sale to Europe and United States, Asia, Africa and the world, won majority ofcustomers good reputation and recognition.
8. Certification
