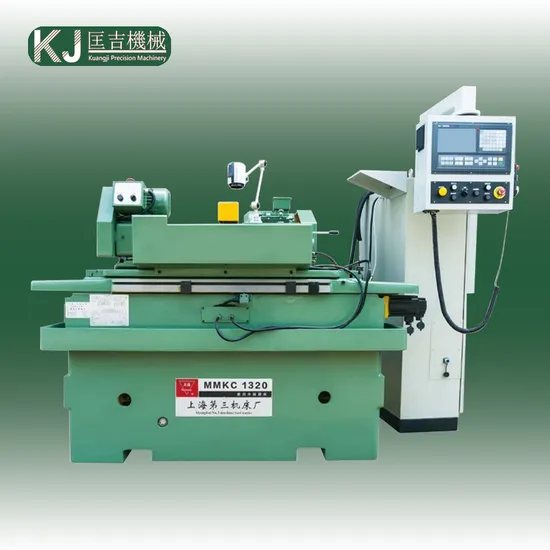

Mkc1320/500 Heavy Duty High Precision CNC Cylindrical Grinding Machine Flat Surface Cutter Grinder 500 mm
| US$21,100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MKC1320/500
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Voltage
380V
Transport Package
Wooden Case Packing
Specification
2400x1700x1800 mm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
| Main Specifications and Technical Parameter | |
| item | MKC1320 |
| Max diameter of grinding | 200 mm |
| Max length to be ground | 500 mm |
| Max workpiece weight | 50 kg |
| Max travel of the table | 600 mm |
| Min feed of the table | 0.001 mm |
| Spindle hole taper | No.3 |
| Spindle Chuck | 125 |
| Tailstrok quill hole taper | No.3 |
| Min feed of the wheelhead | 0.001 mm |
| Spindle speed | 60.85.120.170.230,460 r/min |
| Max travel of wheelhead | 170 mm |
| Max linear velocity of wheelhead | 47 m/s |
| Grinding wheel size(Dxtxd) | 400x40x127 mm |
| Work pressure in hydraulic system | 0.8~1 Mpa |
| Flow rate of cooling pump | 25 L/min |
| Spindle motor | 0.23 / 0.37 kw |
| Grinding electric machinery | 4 kW |
| Total capacity | 8 KVA |
| Overall dimensions(LxWxH) | 2400x1700x1800 mm |
| Weight of machine | 2500 kg |
| Work precision | |
| Roundness | 0.0015 mm |
| Cylindricity | 0.005 mm |
| The surface roughness Ra | 0.32 μm |
| Main accessories | |
| 1.Grinding wheel dresser | 1 set |
| 2.Grinding wheel clamp | 3 sets |
| 3.Grinding wheel balaner | 1 set |
| 4.Grinding wheel | 1 pc |
| 5.Coolant tank | 1 set |
| 6.Other accessories | |
