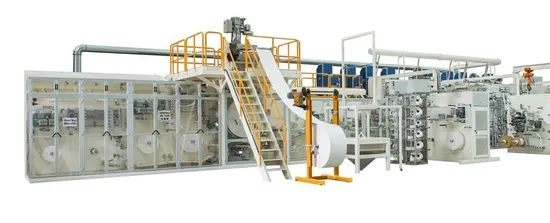

High-Efficiency Baby Diaper Production Line with Large Waistband
| US$1,500,000.00-3,500,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CSG-BD800T
Product Object
Infant
Designed Speed
＞400pcs/min
Production Speed
＞400pcs/min
Computer Control Panel
Computer Control Panel
Product Specification
Large
Automatic Grade
Full Automatic
Certification
CE, UL
Condition
New
Pass Percentage
97%-100%
Color
Customized According to Requirements
Product Structure1
Normal Baby Diaper
Product Structure2
Circle Waist Baby Diaper
Product Structure3
T Type Baby Diaper
Power
500kw Excluding Hot Melt Applicator and Compr
Transport Package
Wooden Crates/Cases
Specification
35 x 9 x 5
Trademark
YUHONG
Origin
China
HS Code
8441901090
Production Capacity
25 Sets/Year
Product Description
NEW YUHONGFull Servo Baby Diaper Machine Product Description
| CSG-BD800T FULL SERVO BABY PULL UP PANTS MACHINE | |
| Product Stucture | |
| 1 | Normal baby diaper |
| 2 | Circle waist baby diaper |
| 3 | T type baby diaper |
| Main Technical Parameters | |
| 1 | Supply,3 phase,380V,50Hz |
| 2 | Power:420KW(Excluding hot melt applicator and Compressor) |
| 3 | Production speed:500/600/700pcs/min |
| 4 | Qualification:≥97% |
| 5 | Outside dimension(m):35 x 9 x 5 (L×W×H)( for reference) |
| Main Function and Features | |
| (I)Mechanical part | |
| 1 | Pulp SAP mixing product and laminating core product are compatible |
| 2 | High-density ultra-thin fluff core forming drum system,good absorbability,and low reverse osmosis |
| 3 | S cut side tape online making, no waste application |
| 4 | 3D material online making application (option) |
| 5 | Laminating core online making application(option) |
| 6 | Top sheet 3-pcs laminating ultrasonic process(option) |
| 7 | With web guiding system |
| 8 | Packing machine or stacker (option) |
| 9 | Dust collection filter system (option) |
| (II)Electric part | |
| 1 | Full servo motor drive and PLC control |
| 2 | One button for size change, quick and less waste |
| 3 | High-precision tension control system,active un-winding and auto-splicing system |
| 4 | i-MAS Intelligent equipment mangement and analysis system |
| 5 | Material auto-splicing joint limit at 3m, and decrease material wastage |
| 6 | Material auto-splicing inspect,broken and lost alarm system |
| 7 | Material picture online positioning application |
| 8 | Vision inspection system (option) |
| 9 | Elastic BTSR tension control system, single tension adjust(option) |
Sales Service
Company Profile
ZHEJIANG NEW YUHONG INTELLIGENT EQUIPMENT CO.,LTD
With nearly 30 years design and manufacturing of disposable hygiene machine( Sanitary napkin machine , Under pad machine , Adult & Baby diaper machine) , more than 30 sets production line per year, and provided thousands of machines to our customers around the world. Especial enjoyed the good reputation in China, South-east Asia, middle-east, and Europe.
