Cow House Floor Dung Cleaner Manure Scraper Slurry Removal Machine

Product Description

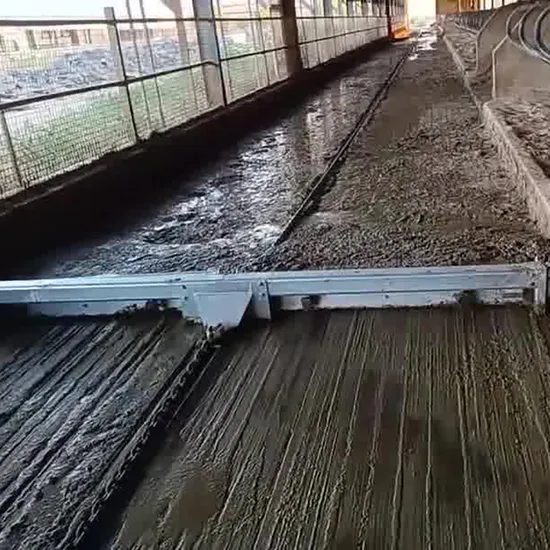

The system consists of motor, drive unit, steering wheel, transmission chain, manure cleaning scraper, control unit, etc.
The working principle is that the drive unit drives the scraper through a chain to move backward and forward. When the scraper moves forward, it cleans the manure, when it moves backward, it does not. At the same time, frequency conversion technology and program writing are combined to achieve anti-collision and de icing functions while cleaning. It is suitable for cowshed with a one-way distance less than 120 meters manure passage.
Product Parameters

Product Composition--Drive Unit	Component Parameter	Enterprise standard
	Number of bottom plate anchor bolts	≥18
	Anti corrosion	Overall hot-dip galvanized
	Bottom plate thickness	≥10
	Lifting system	worm and gear
	Lubrication method for worm and umbrella gear	Lubricate by grease
	Drive unit support plate	≥20mm
	Max chain tighten distance	80cm
	Max manure clearance distance	<150m
	Self lubrication measures for steering wheels	graphite
	Copper sleeve	tin bronze
	Reducer power	1.5kw/2.2Kw
	Motor brand	China brand

Product Composition--scraper	Component Parameter	Enterprise standard
	Scraper galvanized crossbeam	100*100*5
	Thickness of wear-resistant steel scraper	10mm ,eccentric
	Dismantling wear-resistant feet	60Si2Mn
	Bridge type guide rod	1.2m,wear-resistant steel
	Wear resistant rubber	9MPa,thickness: 20
	Permanent magnet	20000 magnetic force
	Wear resistant steel auxiliary hanging plate	10mm ,prevent hanging the cow tail
	Manure passage width	>3m

Product Composition--steering wheel	Component Parameter	Enterprise standard
	10mm thick steering wheel case	bottom plate: wear-resistant steel
	10mm case corner rib plate	>10pcs,full welding
	T-shaped steering wheel	45#steel, specially treated
	30 STEEL SHAFT	45 # steel, modulated
	shaft sleeve	Copper/bearing steel, containing graphite
	Flat copper plate	Aluminum bronze, containing graphite

Product composition - Control Unit	Parameters and functions	Enterprise standard
	sealing form	Layered isolation,fully sealed, dustproof and waterproof
	Heat dissipation method	No fan, heat dissipation by fins
	Anti interference measures	Integrated design, optocoupler isolation
	Applicable temperature	-30ºC~60ºC
	Remote data transmission	4G/5G transmission (Optional)
	Mobile phone monitor	Expandable WeChat Mini Program(Optional)

0

IoT module

Optional (Extra Cost)

1 Detailed Photos

IoT module

Optional (Extra Cost)
