Agricultural Unmanned Rotorcraft Collision Prevention Folding Frame Uav RC Helicopter

Product Description

Product Description

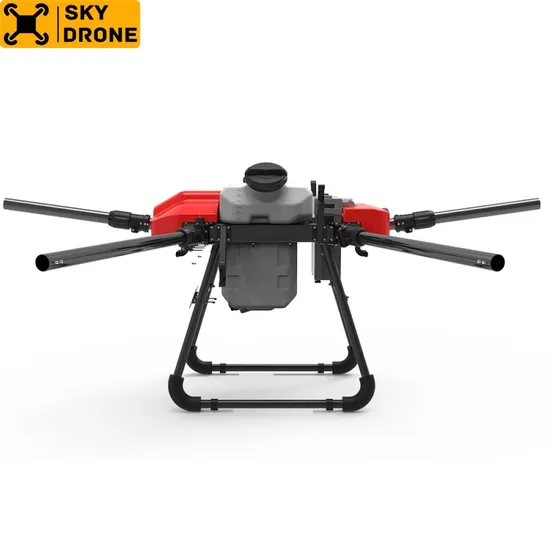

SD-X630
SD-X630 electric six-rotor UAV is a high-end industrial multi-rotor UAV with high equipment reliability and strong stability. It has many advantages such as basic anti-rain, anti-daily dust, anti-third-fourth wind, and strong anti-electromagnetic interference.
Application scenario: Used in agriculture and forestry plant protection, powder spraying, smoke spraying, fertilization, feeding fish and shrimp feed, material transportation and delivery, fire extinguishing bomb delivery and other fields. Product Parameters

Specifications
Expand Size	2150x1915x905 mm
Folded size	1145x760x905 mm
Maximum wheelbase	2150 mm
Arm size	40mm carbon fiber tube
Medicine box volume	30 L
Spreading box volume	40 L

Recommended configuration
Flight control	(optional)
Power system	X9 plus
Battery	14S 28000mAh
Overall weight (without battery)
26.2kg(without battery)
36.3kg(with battery)
Maximum take-off weight
Maximum spraying take-off weight	66.3kg (near sea level)
Maximum spreading take-off weight	77 kg (near sea level)
Hover time
28000mAh & take-off weight 36.3kg)	Hover for 21min with no load
28000mAh & takeoff weight 66.3kg)	Spray full load and hover for 8 minutes
28000mAh & take-off weight 77 kg)	Hover for 7.5 minutes with full load
Maximum effective spray width
4-9 m (about 1.5-3 m from crop height)
Spraying method
Down pressure spraying (6-12 nozzles, optional)
Centrifugal spraying (6 nozzles, optional)
Medicine box volume
Full load 30L (working load, full load 30KG)
Seeding box volume
40L (maximum internal load, 40KG)

Detailed Photos
