HD-SDI, DVI-I Video Interfaces Tracking PTZ Conference Camera

Product Description

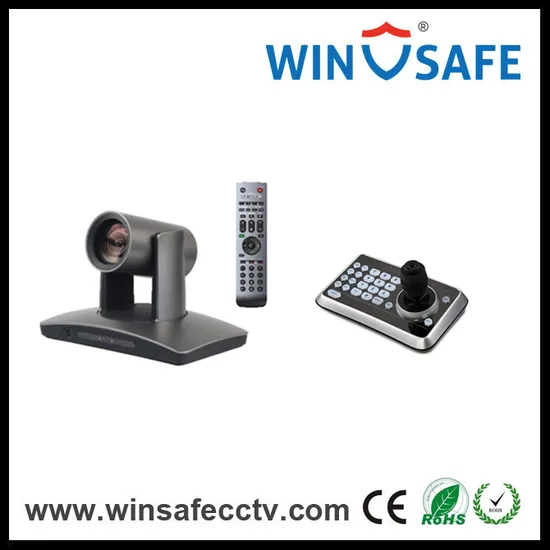

AMC Room Tracker PTZ Video Conference Camera USB 3.0 Tracking PTZ Camera
The RoomTracker comes with HD-SDI, DVI-I video interfaces and RS232/RS485 control interface running
Visca/Pelco-D protocols, added the Ethernet and USB3.0 communication connections, giving the RoomTracker
powerful compatibility with your existing video conferencing systems, be it a software or hardware one
The RoomTracker keeps constantly detecting attendee(s) in the conference room, then automatically pan tilt and
zoom to the appropriate positions to frame all attendee(s); once number of attendee(s) changes, the camera will
adjust framing positions accordingly.
PROVIDE VARIOUS INTERFACES, ACHIEVE EXCELLENT COMPATIBILITY
Support TF Card and with with HD-SDI, DVI-I video interfaces and RS232/RS485 control interface running

Model No.	AMC-E200T
Tracking Camera
Image Sensor	1/2.8" Exmor CMOS, 2.14MP
Focal	3.9mm - 46.8mm
IRIS	F1.6 - F2.8
Zoom	Optical: 20X, Digital: 12X
Field of View	72.5° - 6.3°
Focus	Auto, Manual, PTZ Trigger AF, One push
Min.Illumination	0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed	1/1 - 1/10,000s
AGC	Auto/Manual
S/N Ratio	Above 50dB
White Balance	Auto, Indoor, Outdoor, One push, Manual, Auto Track
AE Control	Auto, Manual, Shutter Priority, Iris priority
Full View Camera
Image Sensor	1/2.8" CMOS
Effective Pixel	2.14MP
White Balance	Auto
Exposure	Auto
Lens	Manual Fixed Focus
Field of View	Horizontal: 86°; Vertical: 52°
Focus	2.4mm
Pan & Tilt
Pan Range	-170° - +170°
Tilt Range	-30° - +90°
Pan Speed	0.1° - +120°/s
Tilt Speed	0.1° - +90°/s
Preset Number	256
Control Interface	RS-232/RS-485/USB3.0
Ethernet	RJ45, 100M
Control Protocol	PELCO-D / VISCA / UVC
Network
Image Resolution	1920 x 1080 @ 60fps
Video Compression	H.264
Audio Compression	AAC
Protocol	RTMP / RTSP / TCP / UDP / ONVIF
Dual stream	Support
Simultaneous Users	Up to 10 users
Video Interface	3G-SDI / DVI-D / USB3.0
Video Format	1080p60/1080p50/1080p30/1080p25/1080i60/1080i50/720p60/720p50
General
Power Supply	DC12V
Working Temp	0°C - +40°C
Storage Temp	-20°C - +60°C
Dimension	243mm x 145mm x 263mm
Weight	1.2KG
Color	Grey

Our Advantages
High quality products
Full selection range
Two years warranty/free maintainance
OEM & ODM Service
CE, FCC, RoHS Certified
Payment: T/T, Paypal, Western Union D/P L/C
3-5 day sprompt delivery
Welcome sample order for testing
Excellent after-sales services
Experienced sales team
Our Service:
1) We'll Gurantee you 100% Satisfaction
2) Pls report us if there are any problem, we will solve it ASSP.
3) This irems comes with 2 Years warrantry
4)Shipping and handing fees are not refundable for return
5) Should you have any question or problems, please send e-mail, call us or talk with us online
