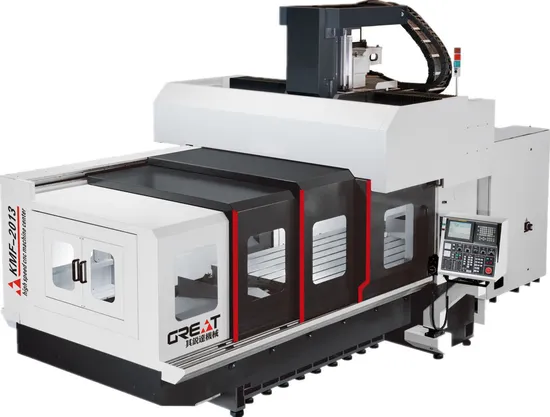

Kmf-2013 Standard High Speed Mold Machine for All Metal Mould Machining

Product Description

KMF-2013 Standard High Speed Mold Machine for All Metal Mould machining Product Description
1. The standard configuration of Siemens 828D system improves the basic performance of CNC, built-in PLC, graphics drawing performance, further achieving high speed, high precision, and closer to full nanometer control.
2. The whole machine adopts high-grade resin sand castings, which are treated by annealing and natural aging to eliminate internal stress, so that the performance of the machine tool is more stable and not easy to be deformed.
3. The three-axis adopts ball screws and roller linear guides, the machine tool runs less thermally changed, high positioning accuracy, and good dynamic and static rigidity.
4. Equipped with a direct-connected spindle, the dynamic balance test at full speed reduces the loss of the output power of the main motor, obtains the best transmission efficiency, reduces tool loss, and improves the surface finish of the product. Detailed Photos

Product Parameters

Items		Unit	KMF-855	KMF-965	KMF-1165	KMF-1510	KMF-1613	KMF-2013
Axis travel	X axis travel	mm	820	950	1100	1500	1600	2000
	Y axis travel	mm	550	650	650	1000	1300	1300
	Z axis travel	mm	550	650	650	500	600	600
	Gantry width	mm	/	/	/	1000	1400	1400
	Distance from the end of spindle to workbench	mm	150-700	150-800	150-800	200-700	200-800	200-800
Workbench	Working desk size	mm	1000×500	1100×650	1300×650	1550×900	1700×1200	2100×1200
	T-slot	mm	5-18×90	5-18×125	5-18×125	5-18×165	7-18×150	7-18×150
	Table load	kgs	500	900	1000	2500	3000	4000
Spindle	Spindle motor	kw	7.5
	Spindle drive	/	Direct
	Spindle speed	rpm	15000(or:12000/240000)			15000(or:12000/240000)
	Cone hole in spindle	/	HSK-A63(or:BT40)			HSK-A63(or:BT40)
Feed	X/Y/Z rapid feed	m/min	24/24/18			20/20/20
	X/Y/Z chip feed	mm/min	1-10000
Precision	Positioning accuracy	mm	±0.005
	Repeatability	mm	±0.003
Automatic tool change	Tool magazine capacity (optional)	/	24
	Maximum tool length	mm	300
	Maximum tool weight	kg	8
	Handle form	/	HSK-A63	/	HSK-A63	HSK
Other	Electricity demand	KVA	20	25	25	30	/	/
	Air pressure source	/	6	6	6	6	6	6
	Mechanical net weight	kg	6000	6500	7000	10800	15000	17800
	Floor area (length×width)	mm	2350×3200×2900	2900×2350×2800	3000×2350×2800	4100×2300×3100	4300×2600×3300	4900×2600×3300
