220V 120V 110V Single Phase Servo Motor Type Voltage Stabilizer
| US$80.00-130.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
4kva
Frequency Characteristics
Low Frequency
Usage
Tnd
Frequency
Low Frequency
Size
Small
Iron Core Shape
Ring
Application Range
Many Kinds of Appliance
Brand
Skz
Power Rating
1-5kVA (Customized)
Control Method
Servo Motor(Carbon Brush)
Output Voltage AC
Racy: 1%-5% Can Be Customized
Efficiency
≥95%
Response Speed
≤1s
Insulation Resistan
≥2mΩ
Working Humidity
20%-90%
Transport Package
Standard Exporting Pazkage
Trademark
SKZ
Origin
China
Production Capacity
10000 Units/Month
Product Description

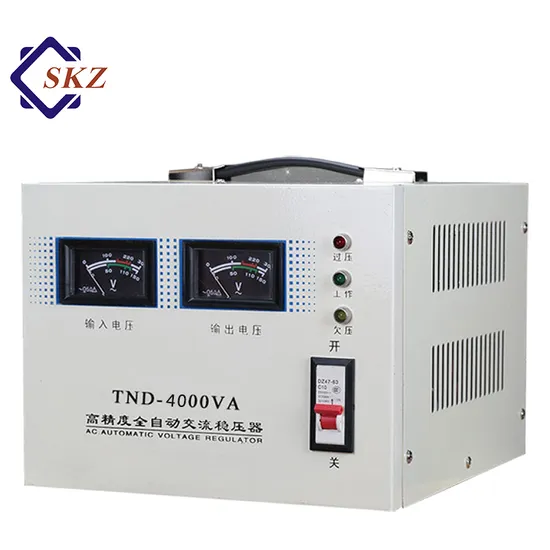

220V 120V 110V Single Phase Servo Motor Type Voltage Stabilizer
220V 120V 110V Single Phase Servo Motor Type Voltage Stabilizer is consist of voltage regulation coil, servo motor and digital control circuit. When there is voltage fluctuation, the control circuit will send signal to the servo motor, then the servo motor will drive the carbon brush to move on the voltage regulation coil, consequently it outputs stable voltage.
| Item | Parameters |
| Power Rating(KVA) | 1-5KVA (customized) |
| Control Method | Servo Motor(Carbon brush) |
| Input | |
| Input Voltage | Single Phase Voltage(110V/120V/200V/220V/230V)±20% |
| Frequency | 50/60 Hz |
| Output | |
| Output Voltage | Single Phase Voltage(110V/120V/200V/220V/230V)±1%~5% |
| Output Accuracy | ±1% (1%~5% Adjustable) |
| Power Factor | PF≥1 |
| Efficiency | ≥98% |
| Response time | ≤0.5S |
| Delay time(When it is on) | ≤5s(Optional) |
| Waveform Distortion | ≤1% |
| System Protection | |
| Protection | Over Voltage, Under Voltage, Overload, Short Circuit |
| Bypass | Available |
| LED Digital Display | |
| Display | Input Voltage, Output Voltage, Working Status |
| Others | |
| Cooling | Air Cooling |
| Insulation Resistance | ≥2MΩ |
| Delectric Strength | No breakdown for 2000VAC/ min. |
| Noise | <65dB/m |
| Working Environment | |
| Working Temperature | 0ºC-45ºC ( No condensation ) |
| Working Humidity | 20%-90% |
