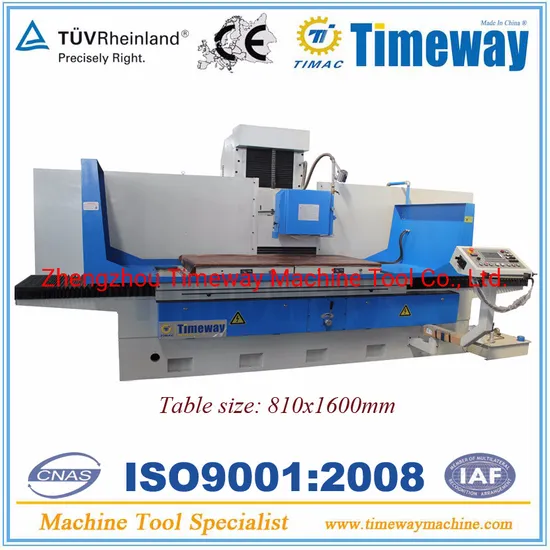

810X1600mm Large Sized Surface Grinding Machine (SG-81160FR)

Product Description

Column Moving Type NC Surface Grinding Machine
Large sized surface grinder(grinding machine) with PLC & HMI interface
Model: SG-81160FR, SG-81220FR, SG-81300FR, SG-81400FR
Features:
1. Double walled column construction, providing high rigid support. Adopt counterweight balance, making the machine moving stably, and reducing the load of the ball screw, keeping the accuracy for long time.
2. Adopt rectangular guideway coated with ZA30-C zinc-based alloy, to get low friction coefficient, good abrasive resistance and high rigidity.
3. Adopt the Flat-V type guideway to set good guidance quality on longitudinal and transverse, precision scraping to keep stable work accuracy by hand.
4. The transverse and vertical movement are driven by AC servo motor, and the electronic hand wheel (MPG) instead of the tradition mechanical hand wheel, to get high accuracy and easy operation.
5. The independent and large capacity integrated hydraulic station equipped with air cooling and pressurizer, isolate heat and vibroseis, to provide excellent power for precision grinding.
6. The wheelhead spindle use the hydrostatic bearing with high rigidity (high precision ball bearing for export), which can provide the power force together with 18.5kw motor, suitable for the heavy machining. The spindle rotary is supported by rigidity oil layer without wear; ensure the high precision and long life span.
7. Hydraulic drive for the work table, after adjusting meticulously, the table moved stably with little impact.
8. Adopt SIEMENS touch operation panel. It makes the operation simple and interesting by using power and friendly human-machine interface.
9. Special design, elegant appearance, good stability.
***Standard Accessories:
Coolant tank, Wheel dresser base, Flange and wheel extractor, Standard grinding wheel, Balancing arbor, Balancing stand, Working lamp, Leveling wedge and foundation bolt, PLC grinding controller, Build in electro magnetic chuck controller, 2 axis feed control electro hand wheel.

***Optional Accessories:
Electro magnetic chuck, Hydraulic parallel wheel dresser, Coolant tank with magnetic separator, Coolant tank with paper filter, Coolant tank with magnetic separator and paper filter.

Specification		Unit	SG-81160FR	SG-81220FR	SG-81300FR	SG-81400FR
Working Area
Table size (W x L)		mm	810x1600	810x2200	810x3000	810x4000
Max. grinding dimension (W x L)		mm	810x1600	810x2200	810x3000	810x4000
Max. spindle to table distance		mm	900 (1150)
Electro magnetic chuck (optional)		mm	800x800x2	800×1000x2	800x1000x3	800x1000x4
Max. loading capacity ( include chuck)		kg	2000	2400	3500	5500
3 axis feed
Table longitudinal movement speed		m/min	5~25
Wheel head cross movement	Auto. feed	mm/t	1~30
	Rapid speed	m/min	0.05~3
	Feed of electro handwheel	mm/gr	0.005
Wheel head vertical movement	Auto. feed	mm/t	0.005~0.05
	Rapid speed	m/min	0.05~2
	Feed of electro handwheel	mm/gr	0.005
Grinding wheel
Size ( OD x W x ID)		mm	500 x 75 x 305
Motor
Spindle motor		kw	18.5
Hydraulic pump motor		kw	7.5
Elevating servo motor and cross feed servo motor		kw	3
Total rated power		kw	34
Dimensions and Weight
Floor space (L x W)		mm	4700x3500	6000x3500	8200x3600	10000x4000
Gross Weight		kg	10500	13000	14000	16000
