EPA and Euro V Standard 2 Ton Hydraulic Excavator SD20u 2 Ton Mini Excavator 1 Ton 2 Ton Excavator

Product Description

https://sdexcavator.en.made-in-china.com/product/FOoTQcvxAlYs/China-Brand-New-Crawler-Excavator-Small-Digger-SD18u-1-8-Ton-Digger-Excavator-Buy.htmlSHANDING SD20U 2 TON HYDRAULIC MINI EXCAVATOR
Excavators are also called diggers, mechanical shovels, or 360-degree excavators (sometimes abbreviated simply to "360"). Tracked excavators are sometimes called "trackhoes" by analogy to the backhoe. Compact (mini) excavator delivers impressive performance in tight areas with minimal repositioning. Hydraulically retract the undercarriage to only 1000MM to travel through gates or between homes, then expand to 1300MM. for a wider footprint and greater performance. Zero tail swing gives you better maneuverability on the most restricted jobsite. Choose an excavator with the ideal combination of horsepower, dig depth, arm configuration and tail swing style for your work. Add specialized attachments that do more than dig, and maximize productivity on every project you can take on, no matter how big or small.

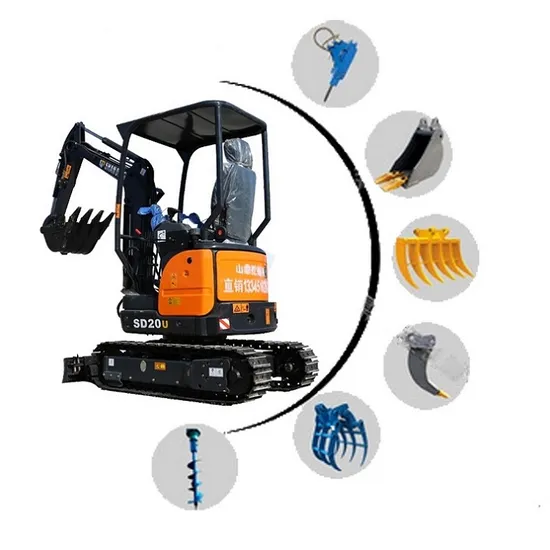

.SD20U is a hydraulic excavator,a real tailless mini excavator; uses EPA/Euro V standard Perkins/Yanmar engine ,boom swing optional;retractable undercarriages optional;cabin optional;can work with hammer,auger,grab,rake etc.
WHY CHOOSETHIS EXCAVATOR?"A highly efficient little excavator." If you have a tough job and less access, this is the machine you need.
Excavate footings, remove tree stumps, install modular drainage, lift blocks, auger post holes, excavate pools, backfill retaining walls, remove / install fencing, break concrete and remove spoil when combined with the mini dumper.
Great for restricted access excavation, demolition, cleanups, construction work and landscaping.
MAIN PARMETERS:

Machine parameters
Model	SD20U
Operating Weight	2 ton
Bucket Capacity	0.06m³
Rated Power	10kw ,11.2kw,14.7 kw
Max.Hydraulic System Pressure	18mpa
Max. Grade ability	30°
Max Walking Speed	2.8-4.1km/h
Max Digging Force	16kn
Platform Rotary Speed	14 r/min
Boom swing function	yes
Crawler stretch function	optional
Dimensions
Overall Length	3400mm
Overall Width	1100-1300mm
Overall Height	2200mm
Arm Length	950mm
Boom Length	1700mm
Track Length	1550mm
Track Width	230mm
Platform Width	970mm
Platform Ground Clearance	480mm
Bucket Width	450mm
Working range
Max. Digging Height	3400mm
Max Digging Depth	2050mm
Max. Digging Radius	3600mm
Max Dumping Height	2400mm
Radius of Tail Gyration	670mm
Max. Sinking Depth of Bulldozer	195mm
Max. Lifting Depth of Bulldozer	200mm
Machine configure
Engine Model	Perkins,Yanmar
Main valve	Husco
Main Pump	Futai (3 pumps system , gear pump ) Taifeng (Loading sensatitve Plunger pump)
Rotation Motor	Eaton
Walking Motor	Eaton /LMT-03C Double Speed walking Motor

Advantages:
