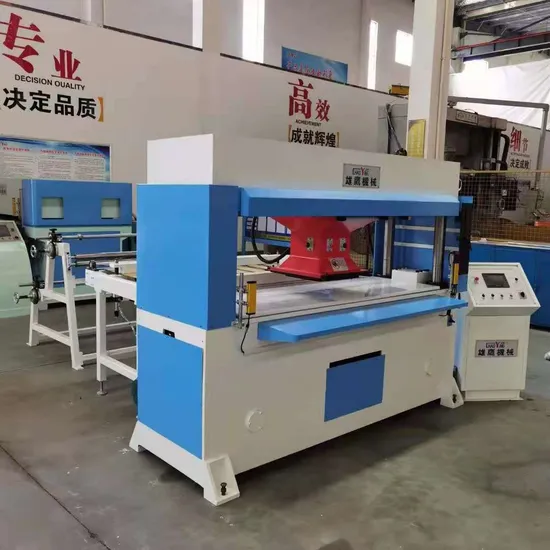

Automatic Shoes Insole Hydraulic Cutting Machine

Product Description

Automatic -feeding by double-clip precision four-column traveling head cutting machine Use and characte
It is suitable for continously cutting large batch of regular or same specification non-metallic coiled material by the cutting die,it's especially suitable for cutting such as sports goods,ball ,abrasives,shoes,medical supplies and etc.
Technical specification

max.cutting force	500KN
stroke adjustment range	0-120mm
range between the working tables	30-150mm
sideway spped of traveling head	50-250mm
feeding speed	20-90mm/s
size of traveling head	Dia500mm
size of lower worktable	1600*750mm
motor power	5.5kw
overall dimension	2360*1350*1950mm

Processing workshop
company
client
why choose us?
1.Our company is specialized in all kinds of hydraulic cutting machine for more than 20 years.
2.We are manufacture,not trading company,competitve price.
3.Strict quality control,each machine must test 10-12 hours before leaving factory.
4.One years guarantee,support online ,video,email,within 8 hours to reply to after-sales question.
