Rg59 Security Cable for Surveillance Camera Monitoring with F Compression Connector

Product Description

Rg59 Security Cable for Surveillance Camera Monitoring with F Compression Connector
Application:Local Communication Cable, Coaxial Cable, LAN Cable
Conductor Material:BC/CCS/CCA/TC/CU/CCAG
Cover Material:PE/PVC
Material Shape:Round Wire
Conductor Type:Solid
Wire Core Material:Bare Copper Wire
Certification:CE, ISO, RoHS, CPR
Model:Rg59
Inner Conductor:CCS, Cu ,CCA,Tc,etc
Insulation:PE,Foaming PE
Shiled:Al Foil,Copper Foil
Braiding Material:Al, CCA,Cu, Tcu etc.
Braiding Coverage:30%, 45%, 60%, 80%, 90% etc.
Jacket:PVC, PE
Color:White, Black, Yellow,Green etc.
Trademark:OEM
Transport Package:Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box
Specification:Copper or Copper Clad Steel

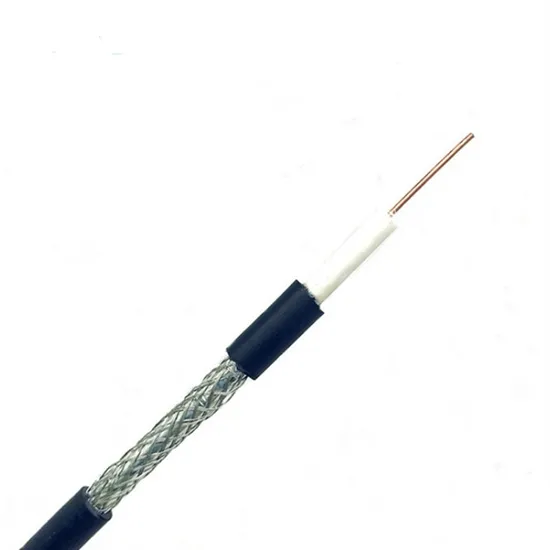

Construction

(1)Center Conductor: 0.81±0.02mm BC

(2)Dielectric: 3.66±0.10mm FPE

(3)Braid: Al Foil + 80*0.16mm Al/Mg

(4)Jacket: 6.10±0.20mm PVC

Inner Conductor:	BC/CCS/CCA/TC/SC Available
Dielectric:	Foam PE/Solid PE
First Shield:	Foil:Copper/ Aluminum Foil,(Un-bonded,Bonded,Double bonded, double un-bonded, Copper colored )
Second Shield:	Al,CCA,BC,TC CCS Available
	Wire Diameter:0.11,0.12,0.15,0.16mm Available
	Braiding Net:32#,48#,64#,80#,96#,112#,128#,144#
Jacket:	PVC/PE (black,white,color)

Characteristics
Impedance:	75+3 Ohm
Capacitance:	53+3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-2300MHz)

Attenuation:
Frequency (MHz)	Maximum (dB/100 m)
5	2.82
55	6.73
187	11.81
350	15.75
550	19.52
750	22.87
865	24.67
1000	26.64
1450	32.05
1800	35.59
2000	39.04

A.Note:1.BC:Bare Copper CCS:Copper Clad Steel CCA:Copper Clad Aluminum TC :Tinning Copper

2.SC:Silver-Plated Copper

B.Any specification can be designed according to your requirement.

C: Our Packing:

(1)Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll (10m,15m,20m,25,30m,50m,100m)

(2)Inner Packing: Wooden reel, plastic reel,paper reel,and gift box

(3)Outer Packing: Carton box, pully box, pallet available

Note:Any packing available according to your request.
