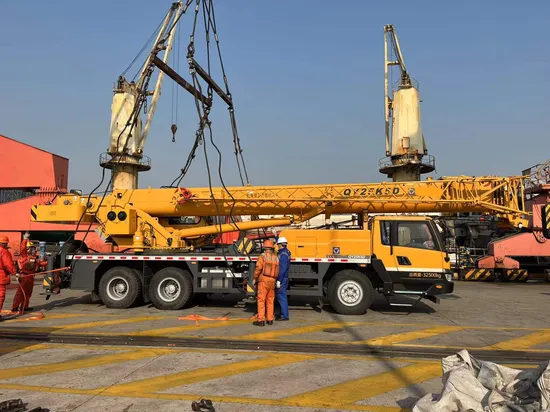

CE 25 Ton Construction Hydraulic Telescopic Truck Crane Qy25K5d Mobile Truck Crane
Basic Info.
Model NO.
QY25K5D
Certification
GS, RoHS, CE, ISO9001
Condition
New
Maximum Lifting Height
>40m
Maximum Lifting Weight
>16t
Shaft Number
3
Crane Jib
Four-Arm
Type
Straight Arm
Aftersales Service
Include
Wheel Base
4425+1350mm
Overall Length
12650mm
Maximum Travel Speed
75km/H
Transport Package
Polywood Case
Specification
Customizable
Trademark
SKYMARD
Origin
Hunan, China
HS Code
8705109100
Production Capacity
50000 Pieces/Year
Product Description
Product Description *. Waterproof connector clip. It is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65.*. Aluminium alloy fuel tank. Good appearance quality, corrosion resistance, strong shock resistance capacity.*. Double- broken line winch. The hoisting rope is in alignment, and it will be more reliable if turn off the press-rope machine.*. Optimized heat-removal system. The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45ºC.Detailed Photos
Product Parameters
| Description | Unit | Parameter value | |
| Overall length | mm | 12650 | |
| Overall width | mm | 2500 | |
| Overall Height | mm | 3380 | |
| Wheel Base | mm | 4425+1350 | |
| Total vehicle mass in travel configuration | kg | 29400 | |
| Engine Model | SC8DK280Q3 | ||
| Engine rated power | kw/(r/min) | 206/2200 | |
| Engine rated torque | N.m/(r/min) | 1112/1400 | |
| Max. travel speed | km/h | 75 | |
| Min. travel speed | km/h | 2.9 | |
| Max. grade ability | % | 30 | |
| Max. total rated lifting capacity | t | 25 | |
| Max. load moment | Base boom | KN.m | 1000 |
| Fully-extended boom | 600 | ||
| Fully-extended boom + Jib | 376 | ||
| Hoist height | Base boom | m | 10.8 |
| Fully-extended boom | 34.19 | ||
| Fully-extended boom + Jib | 42.3 | ||
| Boom length | Base boom | m | 10.7 |
| Fully-extended boom | 34 | ||
| Fully-extended boom + Jib | 34+8.15 | ||
