Professional After-Sales Service Under Pad Pet Pad Packing Machine

Product Description

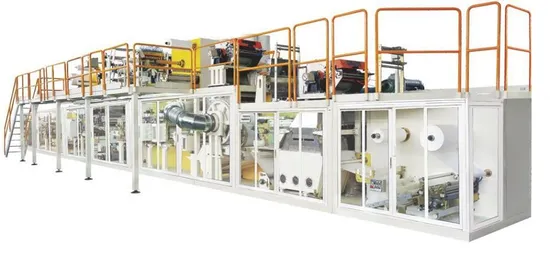

Under Pad Making Machine

Subject	Parameter
Stable Working Speed	250-400pcs/min (By order)
Pass Percentage	≥98%
Operating Rate	≥85%
Power Supply	380V 50Hz
Electrical Supply	380V ±5%, 50Hz Three-phase four-wire + ground wire
Power Installed	About 180KW (Not included hot melt glue machine)
Supply Pressure	0.6-0.8Mpa
Machine Sizes (L× W× H )	24.0m× 2.2m× 3.5m(L× W× H )(Only for reference)
Main Engine Sizes (L× W× H )	32m× 6m x4.5m (L× W× H ) ( Only for reference)
Machine Color	Customerized

Configuration:

Configuration
Product Structure	Top tissue paper, cotton core(SAP), bottom layer tissue paper, Top sheet, PE film.
Product Size	600 Width: 400, 600, 900, 1200 length, 900 Width: 400, 600, 900, 1200 length (Customized Design)
Control System	PLC control system, Operating on the touch screen, Configure HDTV monitor
Tension System	Tension unwinding equipped, constant tension control with buffer system, automatic web guide system. The unwinding system ensures materials are stable working at full speed splice, minimize the impact on materials tension force, to reduce the time of the stop machine.
Drive System	Full servo, semi-servo drive, imported timing belt, key position adopt with the imported bearing.
Safety System	It has a safety device on the operating side, matched with an urgent stop switch, the high audio fan uses sound insulation or silencer.
Materials corrective system	Germany BST automatic web guide system(optional)

Our main Products:

Company Information:
Quanzhou DNW Machinery Manufacturer Co., Ltd. is a professional in the research, development, production, sales, and service of disposable hygiene product manufacture equipment.
Our company has consistently adhered to "quality as a fundamental, development by innovation" as our business culture. DNW has a strong design and technology team and is equipped with an advanced CNC gantry machining center, CNC high-precision CNC lathe, large-scale radial drilling machine, precision saddle lathes, milling machines, and other processing equipment.
Our service:
Professional
DNW has a strong design and technology team and is equipped with an advanced CNC gantry machining center, CNC high-precision CNC lathe, large-scale radial drilling machine, precision saddle lathes, milling machines, and other processing equipment.
Service
"Quality as Fundamental, Development by Innovation" is our company culture. We are one of the leading manufacturer in China and focus on supplying A-Z and 7X24H Service for the customer in the disposable hygiene product filed
Innovate
DNW adopt scientific management strict monitoring, research, and development of new products constantly for different customers. Depend on our good engineer from the design and technology team.
Efficient
Efficiency is the life of the company. DNW attaches great importance to enterprise efficiency. Introduces advanced company management system for all of our team. According to production schedule to ensure the timely finish of machine of customers.
FAQ:
1. What is your lead time?
A: The manufacture date is 90 to 150 days after deposit receipt.
2. What are your order payment terms?
A: 30% deposit in advance and 70% balance before shipment.

3. Can you send us samples of the final product ?
A: Yes, free samples can be sent out, the freight charge is paid by you.
(1). You can provide your a/c like DHL or FEDEX or TNT
(2). You can call your courier to pick you up at our office.
(3). You can pay us the express charge by western union or T/T.

4. Where is your factory located? How could I visit you?
A: Our factory is based in Jinjiang city, Fujian province, China
You can fly to Jinjiang airport, we will pick you up.
