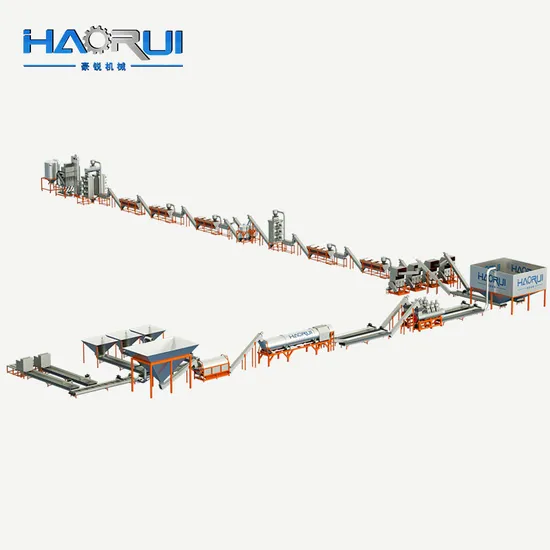

HR3000 Polyester PET bottle plastic recycling machine washing line
HAORUI company , insist in plastic recycling machine manufacturing since 1992
We insist on the principle of "quality is first" and inspect the machine after producing " which make our market more popular in Domestic and over 40 sets of PET bottle washing line(four 6000kg/h capacity in Nigeria ,Ghana etc),were installed in Middle East,Africa,South America,South East, South Asia and so on.
We have our unqiue design with 13 patent certification,machines working smoothly with customer, less maintanence.
We provide professional solution,help customer aovid investment mistake.
We provide hight input-otput ratio machine, help customer do profitable business.
Detailed Photos

Our Customers
Our main makret is in Asia , Africa, like Vietnam, Thailand, Cambodia, Myanmar, Laos, Nigeria, Kenya, Ghana, Uganda....
6tons/h line in Nigeria 3tons/h line in Ghana
3tons/h line in Nigeria 3tons/h line in Kenay

6tons/h line shipping to Thailand 3tons/h line in Vietnam

SN:	Item name:	Function
1	Bale Opener machine	Feeding the material equally
2	Conveyor	Feeding material
3	Trommel and bottle prewashing system	Remove the sand, rocks and other dirty from the bottles
4	Conveyor	Feeding material
5	Label Remover	Remove labels from Bottles
6	Manual sorting table	Sorting out remain labels, remain different bottles and so on
7	Crusher	Crushing the bottles into flakes
8	Screw Conveyor	Conveying material
9	1st Auto floating washing tank	Washing out the Floating caps, rings and dirty
10	1st High Speed Friction washer	With high speed Friction Washing out dirty
11	Hot washing tank	With Hot water washing and chemical to remove glue, oil, and dirty
12	Screw Conveyor	Conveying material
13	2nd High Speed Friction washer	With high speed Friction Washing out dirty and Chemical water from flakes
14	2nd Auto floating washing tank	Washing out chemicals, floating caps, rings and dirty,
15	3rd Auto floating washing tank	Washing out floating caps, rings and dirty,
16	Horizontal Dewatering Machine	Remove the humidity from the flakes
17	Hot Air Drying system	Drying the flakes
18	Zig-Zag Air Classifier	Remove the fin dust and small labels
19	Flakes color sorter machine
20	Flakes polymer sorter machine
21	Automatic packing system	Collecting the flakes
22	Electrial contol panel	Used to control the whole Line
23	Free spare parts
PET bottle washing/recycling line/plant can be customized according to your requests.
