Offset Hydraulic Disc Harrow Heavy Model

Product Description

Product Description
1BZY HYDRAULIC PRESSURE OFFSET HEAVY DISC HARROW
The traction type hydraulic offset heavy disc harrow is mainly suitable for smashing the stubble before ploughing, breaking the surface knot, cutting the straw into the field, breaking up the clods after ploughing, leveling and protecting the hoe, etc., and can also replace the plough on the mature land to carry out the soil ploughing operation. The work efficiency is high, the power utilization is reasonable, and the ability to break up the soil is strong. After the working, the surface is smooth and the soil is loose. It has strong adaptability to the filed with heavy soil, wasteland and weeds.

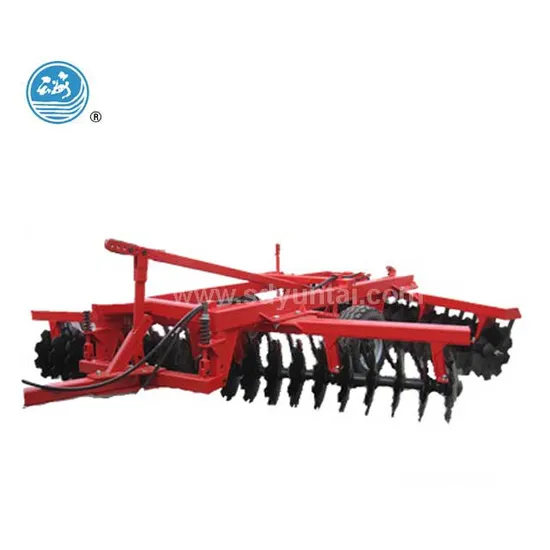

Photos

Model	Number of disc	Size of disc	Working width (mm)	Working depth (mm)	Weight (kg)	Matched tractor (hp)	Note (Bearing Assembly)
1BZY-1.8	16	610x6	1800	150-200	1420	70-85	Grease or oil bath
1BZY-2.0	18	660x6	2000	180-220	1580	85-100	Grease or oil bath
1BZY-2.2	20	660x6	2200	180-220	1660	100-120	Grease or oil bath
1BZY-2.5	24	660x6	2500	180-220	2100	125-150	Grease or oil bath
1BZY-3.0	28	660x6	3000	180-220	2300	150-180	Grease or oil bath
1BZY-3.5	32	660x6	3500	180-220	2850	150-180	Grease or oil bath
1BZY-4.0	36	660x6	4000	180-220	3100	180-200	Grease or oil bath

Company Profile
SHANDONG YUNTAI MACHINERY CO.,LTD., founded in March 2005, registered capital 100 million CNY, covering an area of 135,000 square meters, is a leading
exporter of agricultural machinery and accessories.
YUNTAI company produce 20,000 sets tractor implements and 1,500,000 pcs of
accessories annually and have its owe R & D team and strong production capacity.
YUNTAI company produce agricultural machinery and accessories matched with
18 to 500 horsepower tractor. Including the tillage, fertilizering,Seeding, harvesting,
transporting and plant protection machinery. Main equipments are disk plow, disc
harrow, subsoiler, rotavator, rear blade, spreader, mower, trailer, grain cart, potato
harvester, thresher etc. Main accessories are farm disc blade, plowshare, plow shovel, harrow tine, bearing assembly, harrow axle, trailer axles ,forging parts, casting parts
and so on.
YUNTAI company have advanced production lines of machining, welding,
punching, forging, sandblasting and powder coating. We also have two automated heat treatment lines and the heat treatment production technology is at the top level in the industry. Our products are exported to more than 70 countries and regions, such as the
United States, Germany, France, Australia,Asia, Africa,etc.
