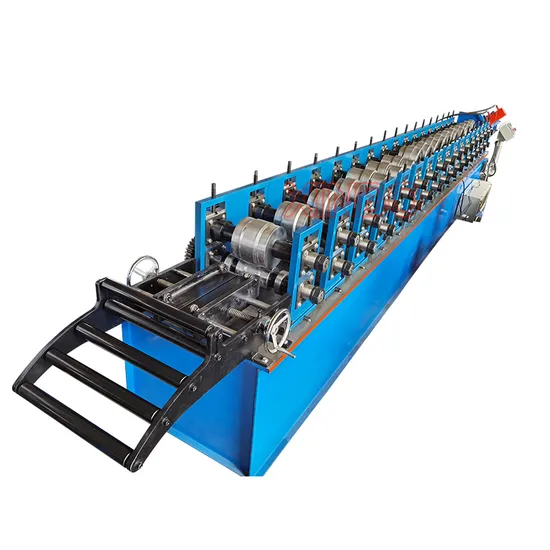

Steel Door Metal Frame Roll Forming Machine Moulding Machine

Product Description

Product Description
Door Frame Roll Forming Machine
The door frame forming machine is a specialized piece of equipment used in the manufacturing of door frames. This machine is designed to take flat sheets of metal and shape them into the desired form for a door frame. The machine consists of a series of rollers and pressers that work together to shape the metal sheets. The machine line is capable of producing door frames of various sizes and shapes. It can be used to make frames for interior doors, exterior doors, and even industrial doors. The machine is highly customizable, with the ability to adjust the settings to produce frames of different thicknesses, widths, and lengths. One of the key benefits of using a door frame forming machine is that it allows for a high degree of precision and accuracy in the production process. This ensures that each door frame is identical, with no variation in size or shape. This is important for ensuring that the door frames fit properly and function as intended.
The door frame forming machine is an essential piece of equipment for any door frame manufacturer. It allows for the efficient and accurate production of high-quality door frames, ensuring that customers receive a product that meets their needs and expectations.
Detailed Photos
Can Be Customized
Processing Flow Chart
Manual Decoiler--- Entry Beach--- Roll Forming Machine--- Automatic Shearing Mechanism--- Computer Control Cabinet---Run-out Tables
Product Parameters

Material	PPGI, GI, Steel, Aluminum
Formed width	As designed
Output width	As designed
Processing thickness	0.6-1.2mm
Productivity	0-15m/min
Diameter of Shaft	Ф70-80mm
Material of Rollers	45# steel, with hard chrome coated
Roller Driven	Decelerating Motor + Chain Transmission
Cutting Model	Hydraulic profile cutting
Length Measurement	Encoder
Control Style	PLC
Operation Model	Button + Touch screen
Number of Roller Stations	16---17 rows or as designed
Total Power	8.5kw
Voltage	380V 50HZ 3Phase or as customers request

Packaging & Shipping
Bare covered, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and cardboard. Or as customers' requirements.
Company Profile
Xinbo Machine Making Company is a 100% manufacturer since 2014. Leading manufacturer of steel plate coiling machinery roll forming and
automatic production lines. The main products used in the steel structure industry and construction industry, such as C&Z shape purlin roll forming machines, load-bearing building decking plate roll forming machines, wall and roof roll forming machines, used for high-grade steel structure residences glazed roof panes roll forming machines, ridge cap tile roll forming machine, all kinds of C and U-shaped channels roll forming machines, door frames roll forming machine, roller shutter door forming machine as well as different kinds of decoilers, bending machine, cutting machine, slitting machine and so on.
Certifications
After Sales Service
All our machine lines are maintained free of charge for 18 months. and we will provide technical support for the whole life of the equipment.
All our machines are well-debugged and tested 3 times before delivery, also if you need us to install them, we will send professional technician to debug (When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians traveling abroad).
FAQ
1. Q: Do you sell only standard machines?
A: Most of our machines are built according to customers' specifications, using top brand name components. 2. Q: What size decoiler can you supply us with?
A: From a 5-ton decoiler to a 25-ton motorized hydraulic decoiler.
3. Q: How to visit your company?
A: a.Fly to Beijing airport: By high-speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high-speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
