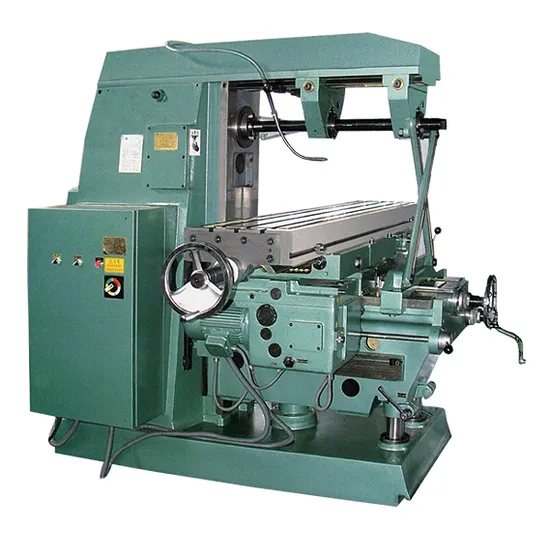

90 Degree Table Swivel Universal Knee-Type Milling Machine (HUM Series)
| US$999.00-7,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HUM Series
Structure
Knee-Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Table Swivel
90 Degree
Transport Package
Wooden Case
Specification
Universal Milling Machine
Trademark
SMAC
Origin
China
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
10.000kg
Product Description
Main characteristics and application:Universal knee-type milling machine is suitable for milling flat,inclined face,angle surface,slots by employing disc cutters,angular cutters,formed cutters and face metal milling cutter.When mounted with the index,the machine will be able to perform milling operations in gears,cutters,helix groove,cam and tub wheel.
The longitudinal,cross and vertical movements of the table can both be operated by hand and power,and it can be rapidly moved.Working table and slide ways adopted quality cast hardened ensure high accuracy.
Specifications
| unit | HUM32 | |
| TABLE : | ||
| Table size | mm | 1320X320 |
| T slot | no | 3 |
| Size ( Width ) | mm | 18 |
| Centre distance | mm | 70 |
| Max. load of Table | kg | 500 |
| Max.swivel of table | degree | ±45º |
| machining range : | ||
| Table Longitudinal travel(manual/auto) | mm | 700/680 |
| Table Cross travel (manual/auto) | mm | 255/240 |
| Table Vertical travel(manual/auto) | mm | 320/300 |
| MAIN SPINDLE : | ||
| Spindle taper | ISO50 7:24 | |
| quill travel | mm | - |
| spindle speed /step | rpm | 30-1500/18 |
| vertical spindle axis to column surface | mm | - |
| vertical spindle nose to table surface | mm | - |
| horizontal spindle axis to table surface | mm | 30-350 |
| horizontal spindle axis to arm bottom | mm | 155 |
| arm travel | mm | 500 |
| FEEDS : | ||
| Longitudinal/cross feed | mm / min | 23.5-1180/18 |
| Vertical/step | mm/min | 8-394/18 |
| Longitudinal/cross rapid speed | mm / min | 2300 |
| Rapid Traverse vertical | mm/min | 770 |
| POWER : | ||
| main motor | kw | 7.5 |
| (X/Y/Z) feed motor | kw | 1.5 |
| coolant motor | kw | 0.125 |
| others | ||
| package dimension | cm | 216x178x199 |
| overall dimension | cm | 229.4x177x166.5 |
| N/W,G/W | kg | 2650 |
Packing list
| N0. | Name | Model | Qty |
| 1 | Machine | HUM32 | 1 |
| 2 | Mill chuck(7:24) | ISO50(4,5,6,8,10,12,14,16) | 1sets |
| 4 | wrench | S17-19,S21-24,S27-24,S32-36 | each 1 |
| 5 | Single head wrench | 14 | 1 |
| 6 | Inner-haxagonal spanner | 5,8,10 | each1 |
| 7 | Shell end milling abor | ISO50-ф40 | 1 |
| 8 | Reduction sleeve | ISO50/MT4 | 1 |
| 9 | Oil gun | 1 | |
| 10 | Horizontal draw bar | M24-M16 | 1 |
| 11 | Horizontal milling bar | Φ22,ф27,ф32 | Each 1sets |
| 12 | Foundation bolt | M20X500 | 4sets |
| 13 | Operation manual | 1 | |
| 14 | Quality certificate | 1 | |
| 15 | Packing list | 1 |
