Zeyu Supplies Easy-to-Install Concrete Mixing Station 50tons Bolted Cement Silo

Product Description

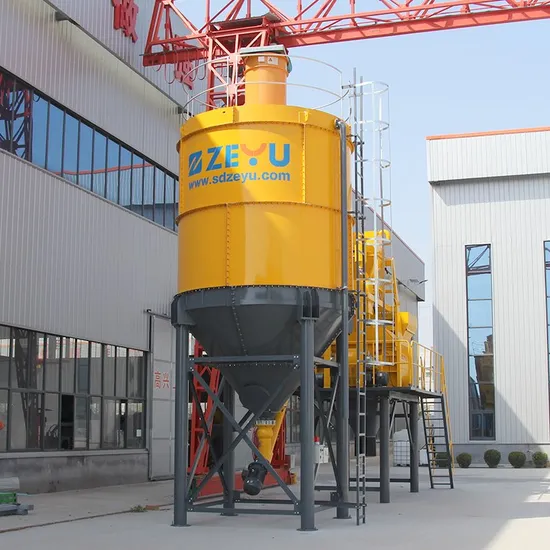

ZEYU supplies easy-to-install concrete mixing station 50tons bolted cement silo
Product Description
All models are can be customized, like Diamater, Discharge height, Total Height and the thickness of the plate, Corne, also the dust collector Model

Product Parameters

Name&Specification	Diameter	Thickness of plate	Legs	Weight	Height of silo body	Total height	Height of legs
50T	3.16m	5.4.3mm	219*5.5	4t	5.1m	13.5m	4.2m
100T	3.16m	5.4.3mm	219*5.5	6t	9.3m	19m
150T	3.6m	6.5.4mm	219*9	10t	10.7m	21m
200T	4.5m	6.5.5mm	273*7	13t	9.3m	19m
300T	5m	8.6.5mm	325*9	19t	10.7m	21m
500T	6m	8.6.5mm	426*12	26t	12m	23m

Company Profile
Shandong Zeyu Heavy Industry Science and Technology Co., Ltd. (For short: ZEYU HEAVY INDUSTRY)----a new star in the field of Chinese mixing machinery. Founded in 2007, the company is a team of passionate men who have been engaged in mixing machinery for more than ten years. The company has more than 120 employees, 30% of which are technical talents. The company's business scope covers: concrete mixing equipment industry chain comprehensive solution, stable soil mixing equipment, PC component special equipment, dry mixing / wet mixing mortar equipment. The company focus on the development, manufacturing and service of mixing equipment for long time.
The company currently has more than 60 varieties products in five major categories. The main products: concrete mixing plant, stabilized soil mixing plant, PC component production line, dry mortar mixing plant and wet mixing mortar mixing plant. It is Widely used in high-speed railway, highway, airport, bridge, port, hydropower and other infrastructure construction and commercial concrete industry. We has provided equipment for Central Government-led Enterprise, such as China Railway Group, China Railway Construction, China State Construction, China Communications Construction, Sinohydro Group etc. and service for National key projects. At the same time, our products have been sold to Southeast Asia, Central Asia, South Asia, the Middle East, Africa and Russia, Mongolia and other countries and regions, and enjoy a good reputation overseas.
