1cavity Semi-Automatic Stretch Blowing Mould/Moulding Machine for 5gallon Bottle

Product Description

D-R800 5Gallon Semi-Automatic blow moulding machine
https://chinadoria.en.made-in-china.com/product-list-1.html
1. Model:D-R800
Categories: Blow Molding Machine Semi-Automatic Stretch Blow Molding Machine
2. Description:
2.1 Brief introduction
D-R800 5 gallon semi-automatic blow moulding machine has been improved
on the basis of its pre-model. By adding
safe door, the machine is safer and easier to operate; also the machine looks neat and nice.
It is widely used to produce PET bottle ranging from 10L to 25L especially 5 gallon water bottles.
2.2A complete production line of D-R800 includes
-Blower
-Infrared heater
-Low pressure air compressor
-High pressure air compressor
-Air Dryer
-Air filters (2pcs)
-5 gallon bottle mould
-Spare parts
2.3 Terms of sales condition:
Delivery time: within 20 days
guarantee: 12 months.
Payment: TT/LC at sight
2.4 TECHNICAL PARAMETEROF D-R800

TYPE	ITEM	UNIT	TECHINICAL DATA
CONTAINER	Product material		PET/PP/PMMA
	container volume	L	6-25(1-cavity)
	theoretical output	pcs/hr	100
	Perform length	mm	15-460
	perform inner diameter	mm	15-200
MOULDING	Max.mould plate dimension(L*W)	mm	420 X 500
	thickness of mould	mm	280-400
	clamping force	KN	220
	mould opening stroke	mm	330
air compressor	air compressor	M3 /Mpa	≥0.60/3.0
	air pressure for blowing	KW	7.5
	low pressure compressor	M3 /Mpa kw	≥0.8/1.25 7.5
main machine electricity	power	KW	15
	voltage/frequency	V/HZ	380/240/110/50-60 (3-phase)
machine size and weight	Blower dimension (L*W*H)	M	2.3*0.74*2.0
	Blower weight	T	1.1
	Infrared-heater dimension(L*W*H)	M	2.66*0.65*1.66
	Infrared-heater weight	T	0.4

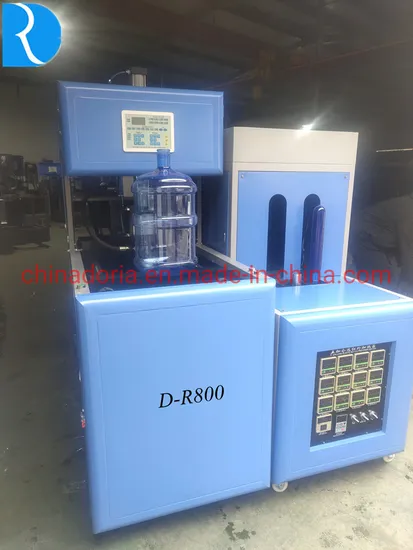

3. Pictures of D-R800
4. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us, we hope we will have good chance to cooperate!
5. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
