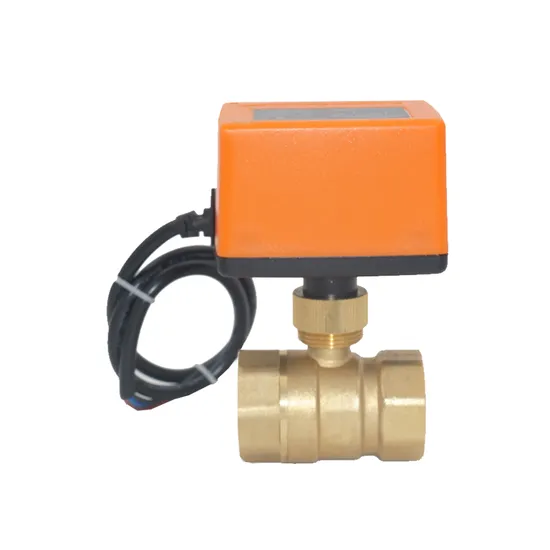

Winvall Wra-5320 Electric Actuator Control OEM Mini Motorized Brass Thread Ball Valve
Basic Info.
Model NO.
WRA-5320+W6BV220
Connection Form
Thread
Driving Mode
Electric
Nominal Pressure
PN1.0-32.0MPa
Channel
Straight Through Type
Structure
Fixed Ball Valve
Type
Fixed Ball Valve
Function
Relief Valve
Temperature
Normal Temperature
Application
Industrial Usage, Water Industrial Usage, Household Usage
Medium
Cold/Hot Water, with 50% Glycol
Temperature of Medium
2ºC...95ºC
Rated Pressure
Pn16
Transport Package
Carton with Pallet
Specification
DN20
Trademark
Winvall
Origin
China
Product Description
DescriptionWinner mini motorized ball valve consists of on/off type actuator and W6BV...series ball valve, which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque.
Application
Winner mini motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipments.
Technical data:
Valve body
Medium: cold/hot water, with 50% glycol Temperature of medium: 2...95 Centigrade
Rated pressure: PN16 Pipe connector: internal thread
Ambient temp. range: -5...+60 Centigrade ;0...90%RH Size: 1/2'', 3/4'' and 1''
Valve type: 2-way only
Material
Valve body: Hpb59-1 Seal: ball: EPDM+PTFE
Ball: PTFE+EPDM with O-ring Stem: EPDM O-rings
Actuator
WRA-5320 AC230, 50/60Hz 3-point
Output torque: 2.5N.m Angle of rotation: 90°
Protect rank: IP54 On/off time: 19S/50Hz; 15S/50Hz
WRA-53... 3-point type
Brown wire is power on Valve open
Blue wire is power on Valve close
Brown or blue wire is power off Valve keep the current position
Black wire is connected to the null wire.
Also can be used as on/off type.
